Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.

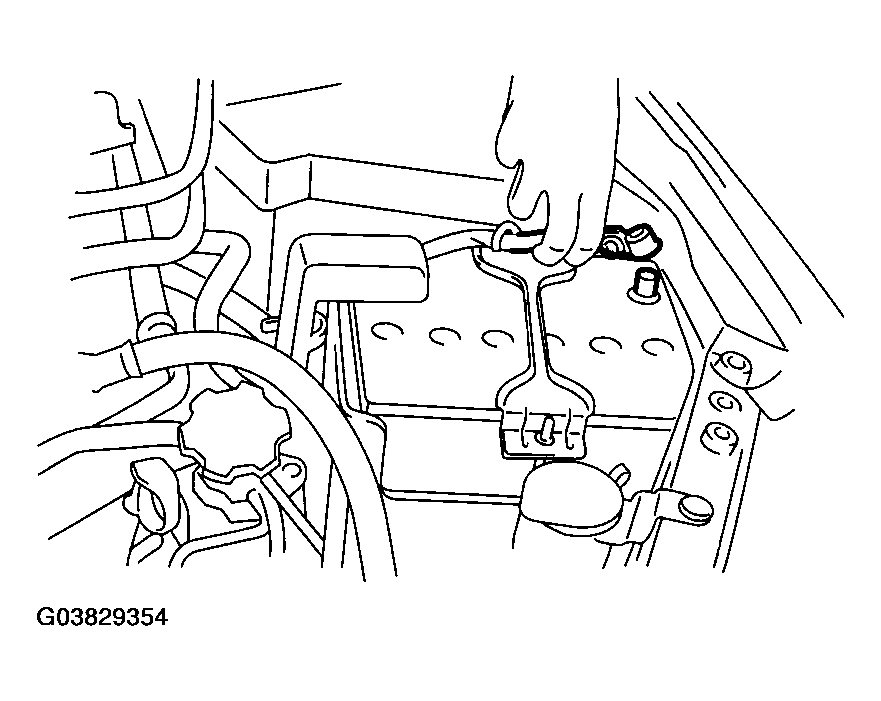

    Fig 1: Disconnecting Ground Cable From Battery
    G03829354Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rear quarter trim. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the fuel pump control unit.

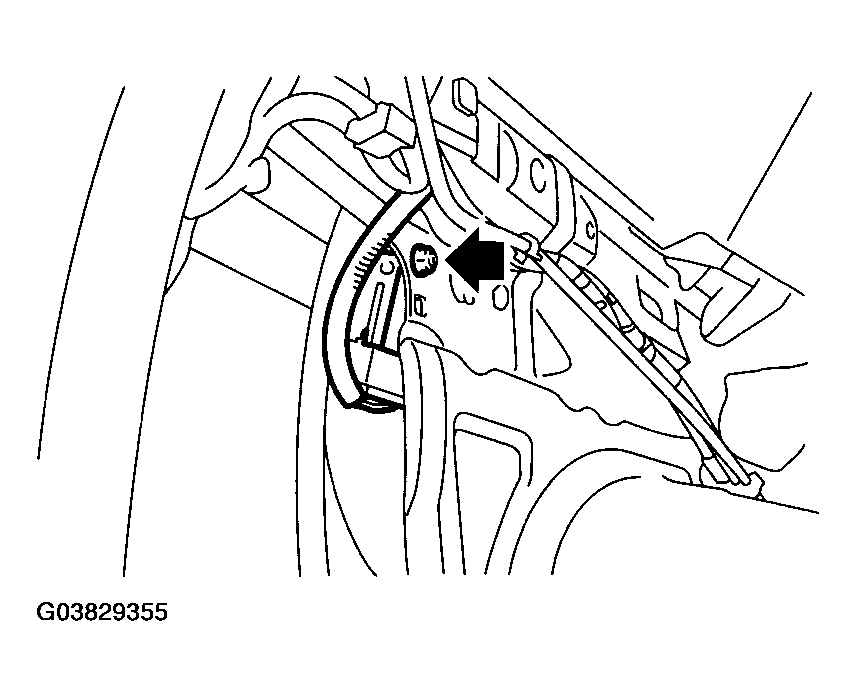

    Fig 2: Removing Fuel Pump Control Unit
    G03829355Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from fuel pump control unit.
