Throttle Body: Installation

Install in the reverse order of removal.

NOTE: Always use new O-rings.

Tightening torque:

8 N.m (0.8 kgf.m, 5.9 ft-lb)

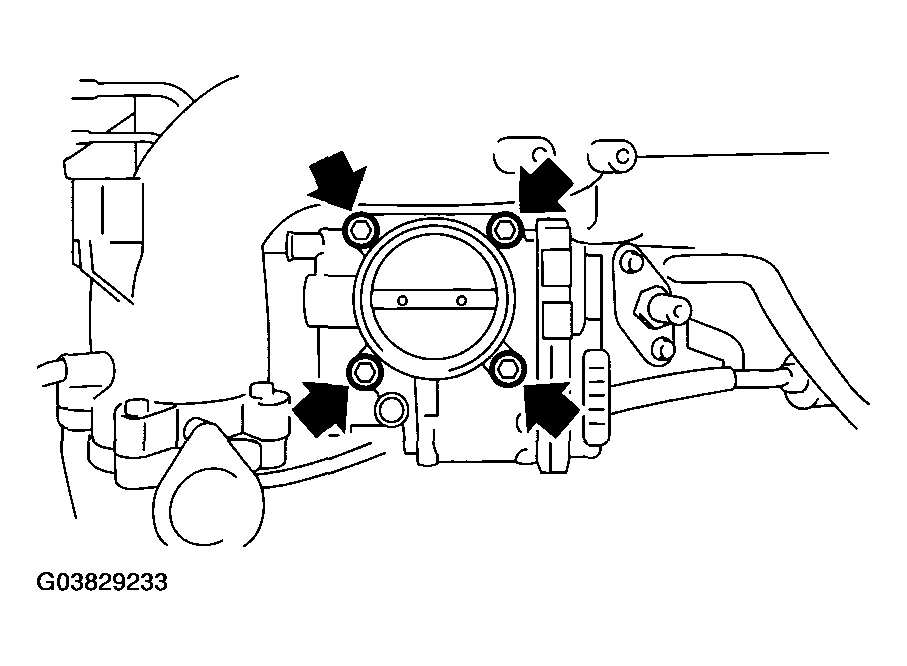

Fig 1: Locating Bolt
G03829233Courtesy of SUBARU OF AMERICA, INC.
