Wastegate Control Solenoid Valve: Removal

1. Remove the collector cover.
2. Disconnect the ground cable from battery.

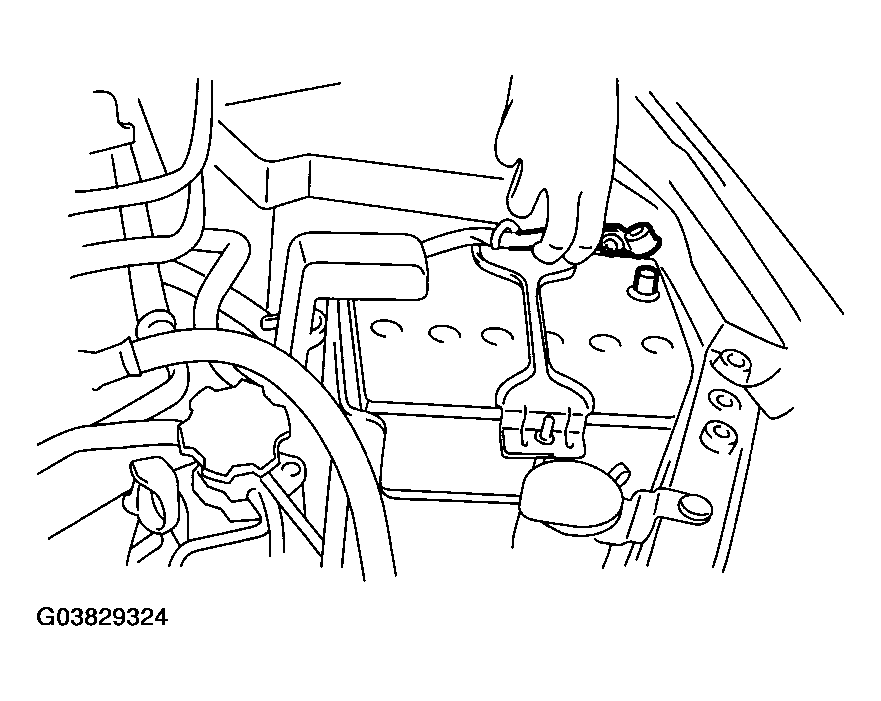

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connector from wastegate control solenoid valve (A).
4. Disconnect the pressure hose (B) from waste-gate control solenoid valve.
5. Remove the wastegate control solenoid valve from bracket.

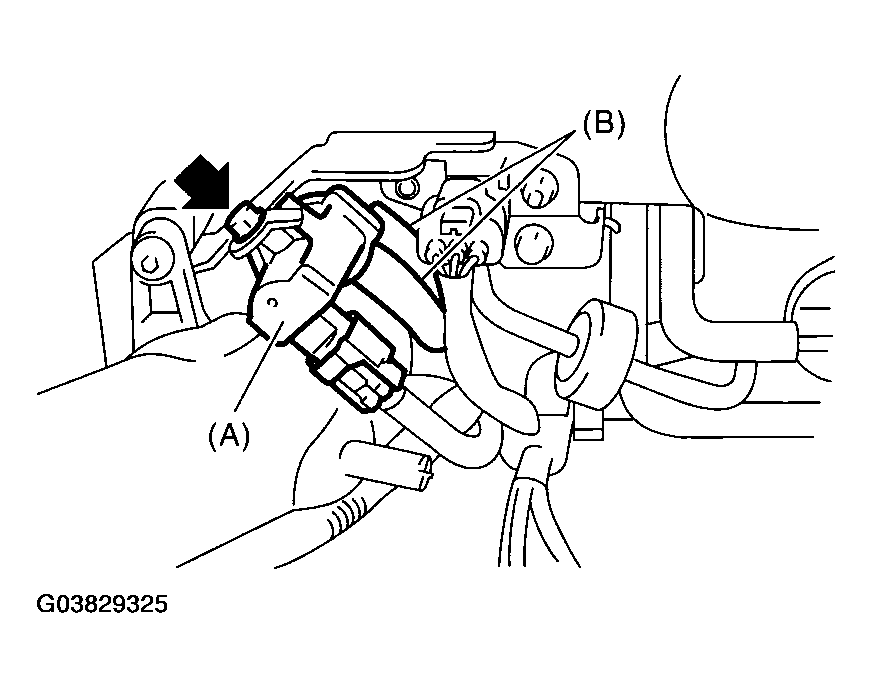

Fig 2: Removing Wastegate Control Solenoid Valve From Bracket

Courtesy of SUBARU OF AMERICA, INC.
