Diagnostics for Engine Starting Failure
›
Procedure
Diagnostics for Engine Starting Failure: Procedure

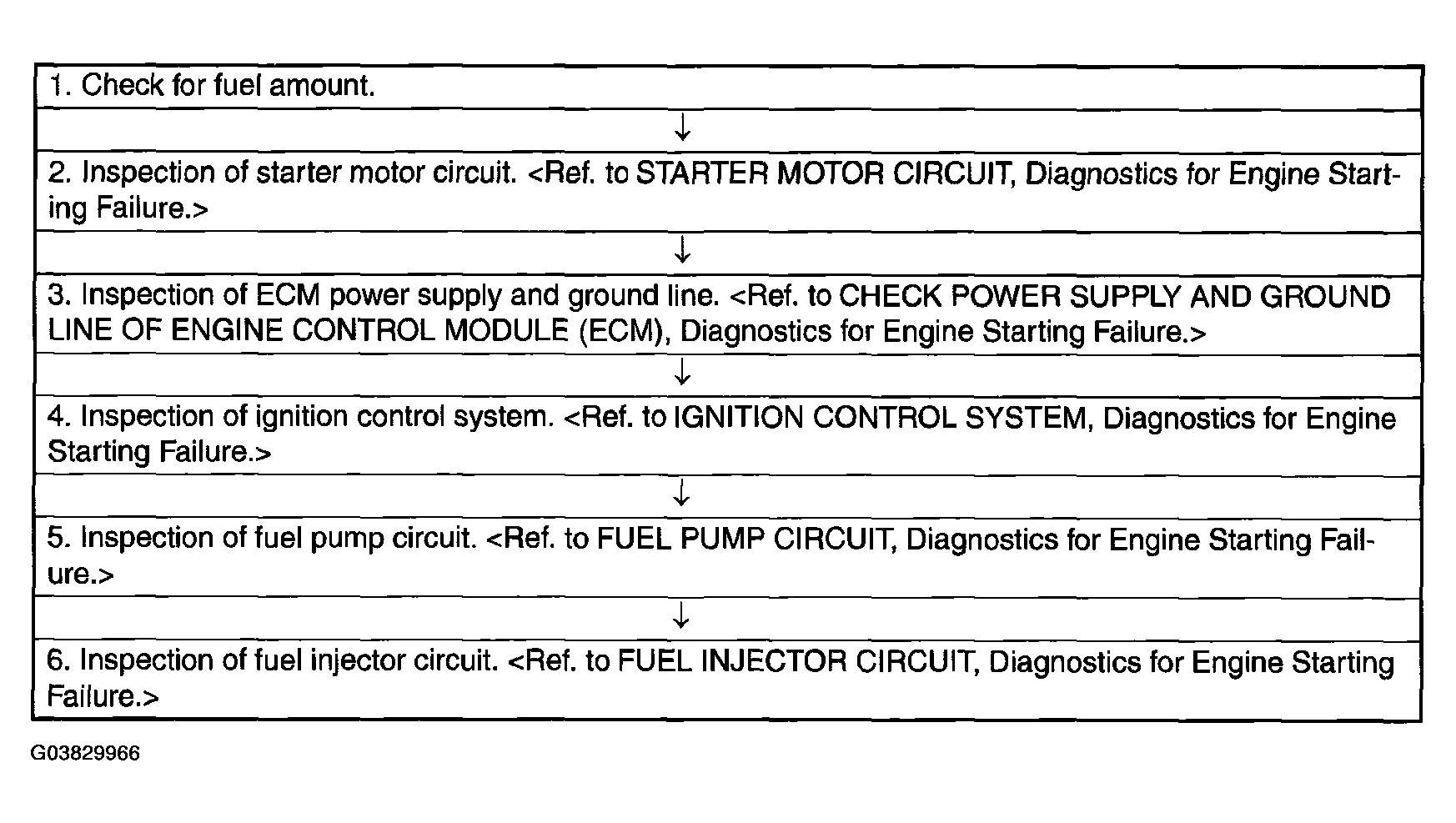

Fig 1: Flow Chart - Diagnostics For Engine Starting Failure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
