Hub Unit Bearing: Assembly

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using ST, press new hub bolt into place.
    CAUTION:
    • Be sure to press hub bolt until their seating surfaces contact the hub.
    • Using a 12 mm (0.47 in) hole in the ST, be careful not to tilt hub bolt during installation.

    ST 927080000 HUB STAND

    Fig 1: Installing New Hub Bolt
    G03751648Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST1, ST2 and ST3, press hub unit bearing into hub.

    ST1 927080000 HUB STAND

    ST2 927450000 HUB INSTALLER

    ST3 28499AE000 SPACER

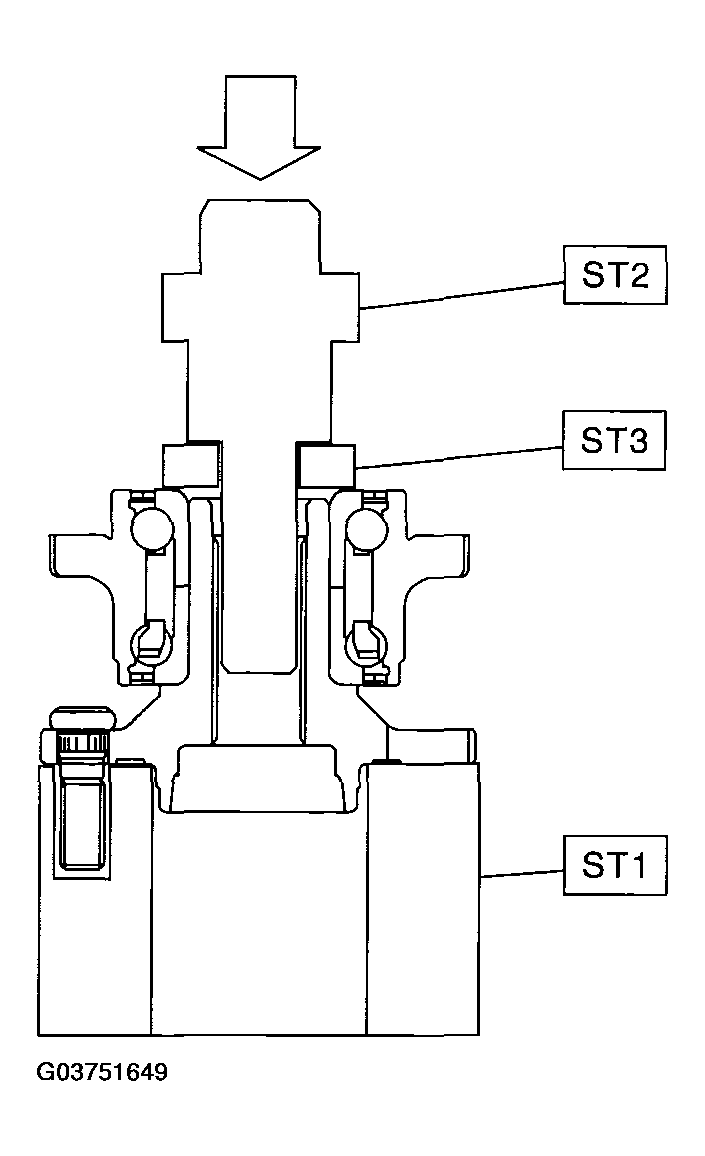

    Fig 2: Installing Hub Unit Bearing Into Hub
    G03751649Courtesy of SUBARU OF AMERICA, INC.
    CAUTION:
    • Always press inner race when installing hub unit bearing.
    • Replace the removed hub unit bearing with new one.
