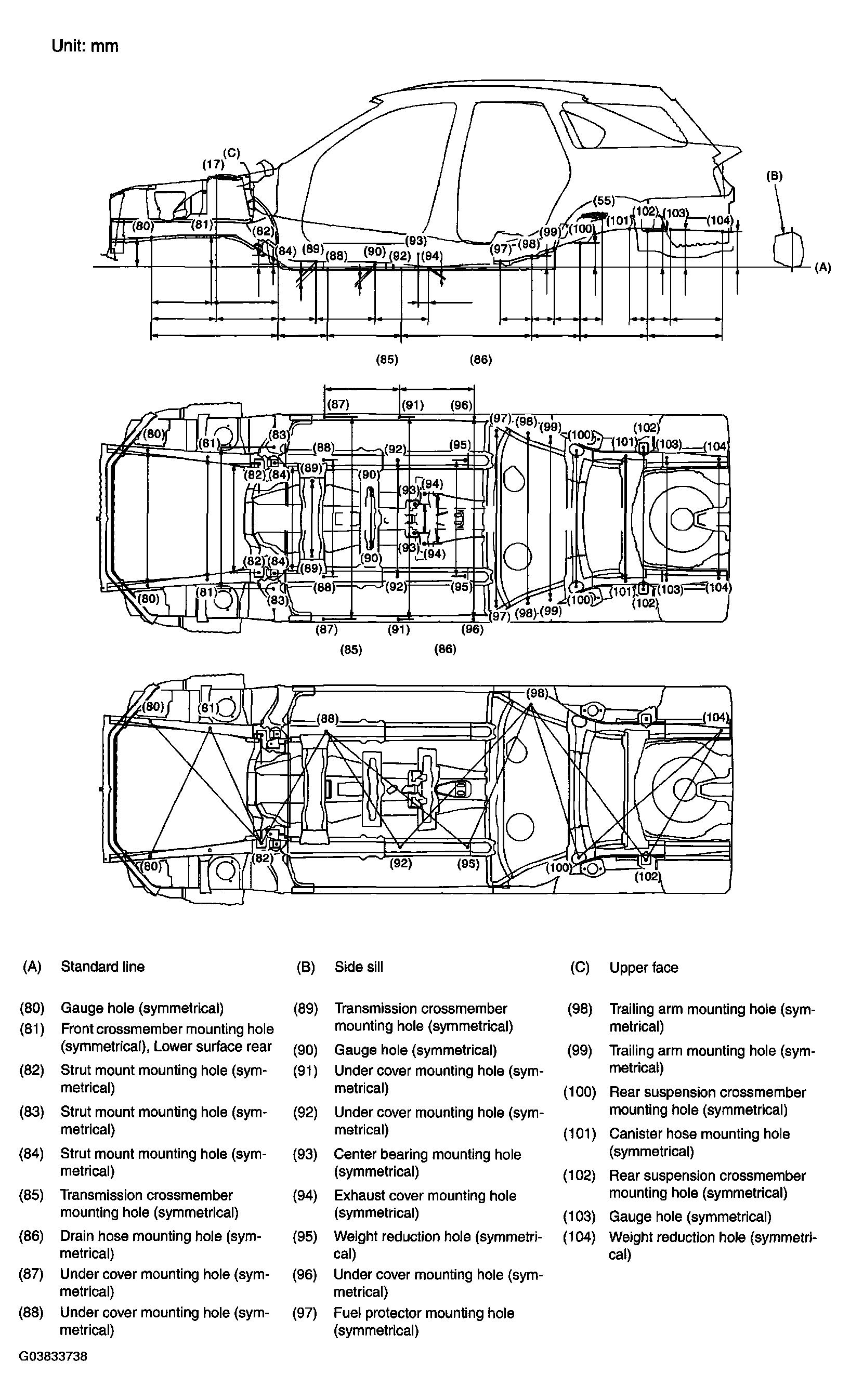

Center Structure
NOTE:
- The longitudinal dimensions are projected dimensions.
- The height dimensions are the vertical distances from the gauge point on the assumed horizontal line through the side sill flange joint (bending angle point).
- Diagonals dimensions are the actual dimensions between reference points. The values in brackets are projected dimensions for reference.

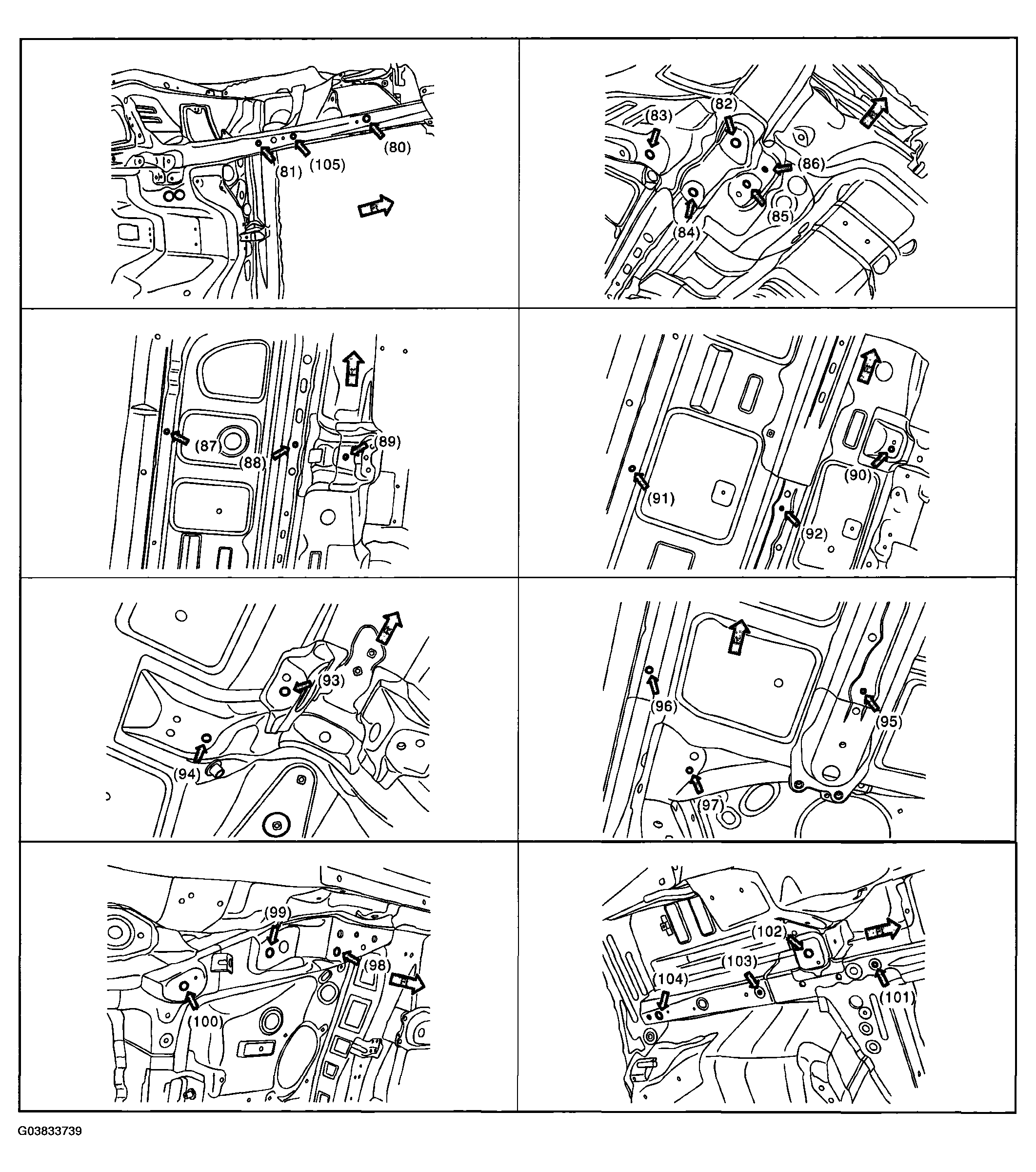

POINT DIMENSION SPECIFICATION
| Measuring point | Reference dimension mm (in) |
|---|---|
| (80) from standard line | 198(7.80) |
| (81) from standard line | 212(8.35) |
| (82) from standard line | 77 (3.03) |
| (84) from standard line | 17(0.07) |
| (89) from standard line | (4AT, MT) 35 (1.38) (5AT) 56 (2.20) |
| (90) from standard line | 18(0.71) |
| (94) from standard line | -9 (-0.35) |
| (98) from standard line | 75 (2.95) |
| (100) from standard line | 164(6.46) |
| (102) from standard line | 243 (9.57) |
| (103) from standard line | 255(10.04) |
| (104) from standard line | 241 (9.49) |
| (17) to (80) | 439(17.28) |
| (17) to (84) | 423(16.65) |
| (80) to (81) | 408(16.06) |
| (80) to (84) | 862 (33.94) |
| (81) to (84) | 454(17.87) |
| (84) to (88) | 335(13.19) |
| (84) to (89) | (4AT, MT) 257 (10.12) (5AT) 357 (14.06) |
| (88) to (92) | 503(19.80) |
| (89) to (90) | 302(11.89) |
| (90) to (94) | 363(14.29) |
| (92) to (98) | 887 (34.92) |
| (93) to (94) | 68 (2.68) |
| (97) to (98) | 215(8.46) |
| (98) to (99) | 152(5.98) |
| (98) to (100) | 329(12.95) |
| (99) to (100) | 177(6.97) |
| (100) to (55) | 149(5.87) |
| (100) to (102) | 457(17.99) |
| (101) to (102) | 123(4.84) |
| (102) to (103) | 157(6.18) |
| (102) to (104) | 511 (20.12) |
| (103) to (104) | 354(13.94) |
| (80) RH to (80) LH | 926 (36.46) |
| (81) RH to (81) LH | 840 (33.07) |
| (82) RH to (82) LH | 746 (29.37) |
| (83) RH to (83) LH | 968(38.11) |
| (84) RH to (84) LH | 756 (29.76) |
| (87) RH to (87) LH | 1,382(54.41) |
| (87) to (91) | 510(20.08) |
| (88) RH to (88) LH | 800 (31.50) |
| (89) RH to (89) LH | (4AT, MT) 529 (20.83) (5AT) 433 (17.05) |
| (90) RH to (90) LH | 396(15.59) |
| (91) RH to (91) LH | 1,382(54.41) |
| (91) to (96) | 510(20.08) |
| (92) RH to (92) LH | 796 (31.34) |
| (93) RH to (93) LH | 200 (7.87) |
| (94) RH to (94) LH | 343 (13.50) |
| (95) RH to (95) LH | 796 (31.34) |
| (96) RH to (96) LH | 1,382 (54.51) |
| (97) RH to (97) LH | 1,200 (47.24) |
| (98) RH to (98) LH | 1,163 (45.49) |
| (99) RH to (99) LH | 1,115 (43.90) |
| (100) RH to (100) LH | 930 (36.61) |
| (101) RH to (101) LH | 856 (33.70) |
| (102) RH to (102) LH | 970 (38.19) |
| (103) RH to (103) LH | 836 (32.91) |
| (104) RH to (104) LH | 814 (32.05) |
| (85) | Height 86 (3.39), Width 620 (24.41) |
| (86) | Height 117 (4.61), Width 600 (23.62) |
| (80) RH to (82) LH | 1,135 (44.68)/1,128 (44.41) |
| (80) RH to (81) LH | 973 (38.31)/973 (38.31) |
| (81) RH to (82) LH | 877 (34.53)/867 (34.13) |
| (82) RH to (88) LH | 894 (35.20)/889 (35.00) |
| (88) RH to (92) LH | 943 (37.13)/943 (37.13) |
| (88) RH to (95) LH | 1,251 (49.25)/1,251 (49.25) |
| (92) RH to (98) LH | 1,325 (52.17)/1,321 (52.01) |
| (95) RH to (98) LH | 1,072 (42.20)/1,069 (42.09) |
| (98) RH to (100) LH | 1,101 (43.35)/1,097(43.19) |
| (98) RH to (102) LH | 1,335 (52.56)/1,325 (52.17) |
| (100) RH to (104) LH | 1,305 (51.38)/1,303 (51.30) |
| (102) RH to (104) LH | 1,028(40.47)71,028(40.47) |
NOTE:
For reference point (17) Strut mounting hole (symmetrical), refer to "Datum Dimensions". < Ref. to
, FRONT STRUCTURE , MEASUREMENT, Datum Dimensions. >
For reference point (55) Rear suspension mounting hole (symmetrical), refer to "Datum Dimensions". < Ref. to , INSIDE , MEASUREMENT, Datum Dimensions.>
