Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics): Electrical Component Location: Location

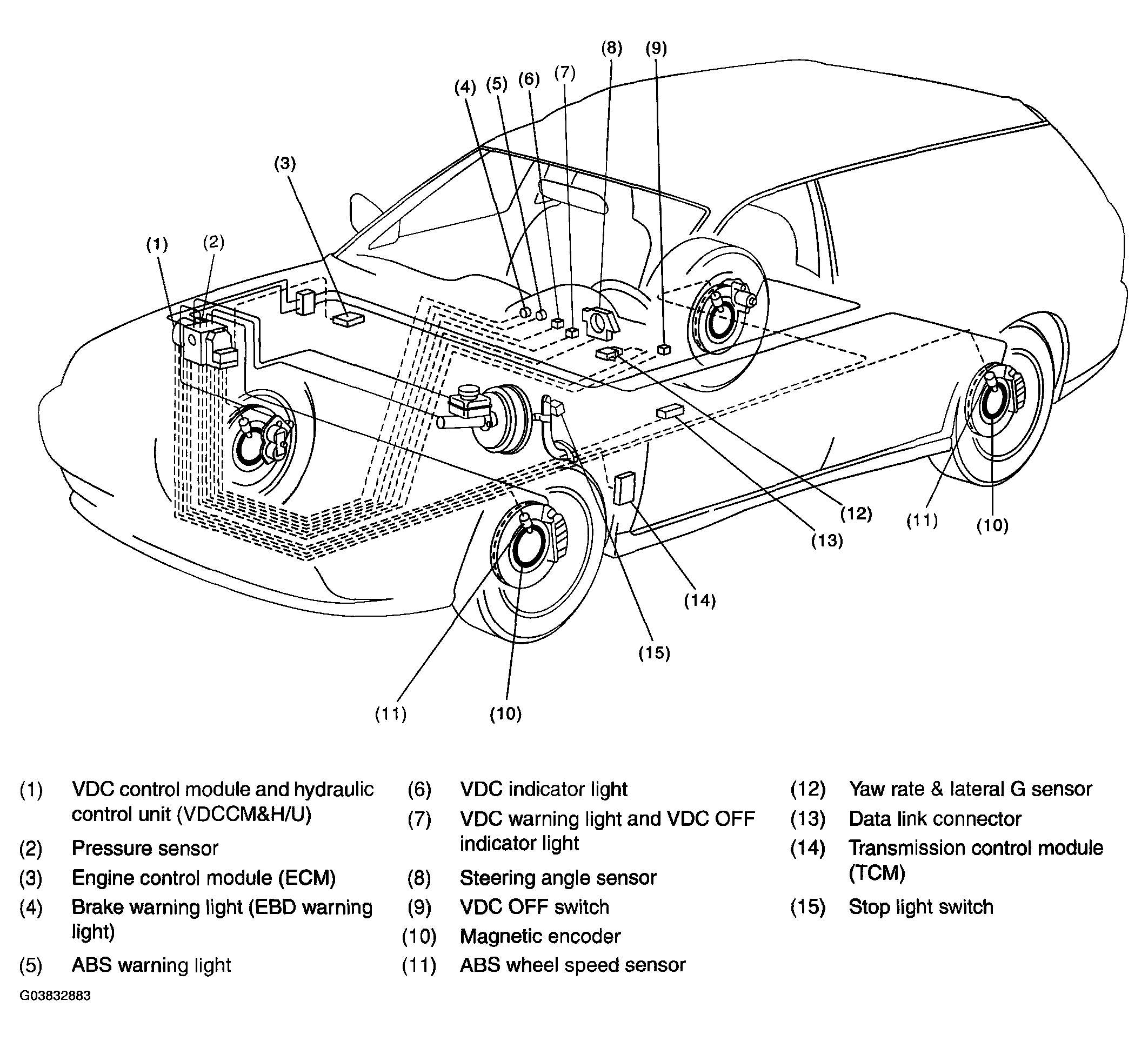

Fig 1: Locating ABS Electrical Components Position (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

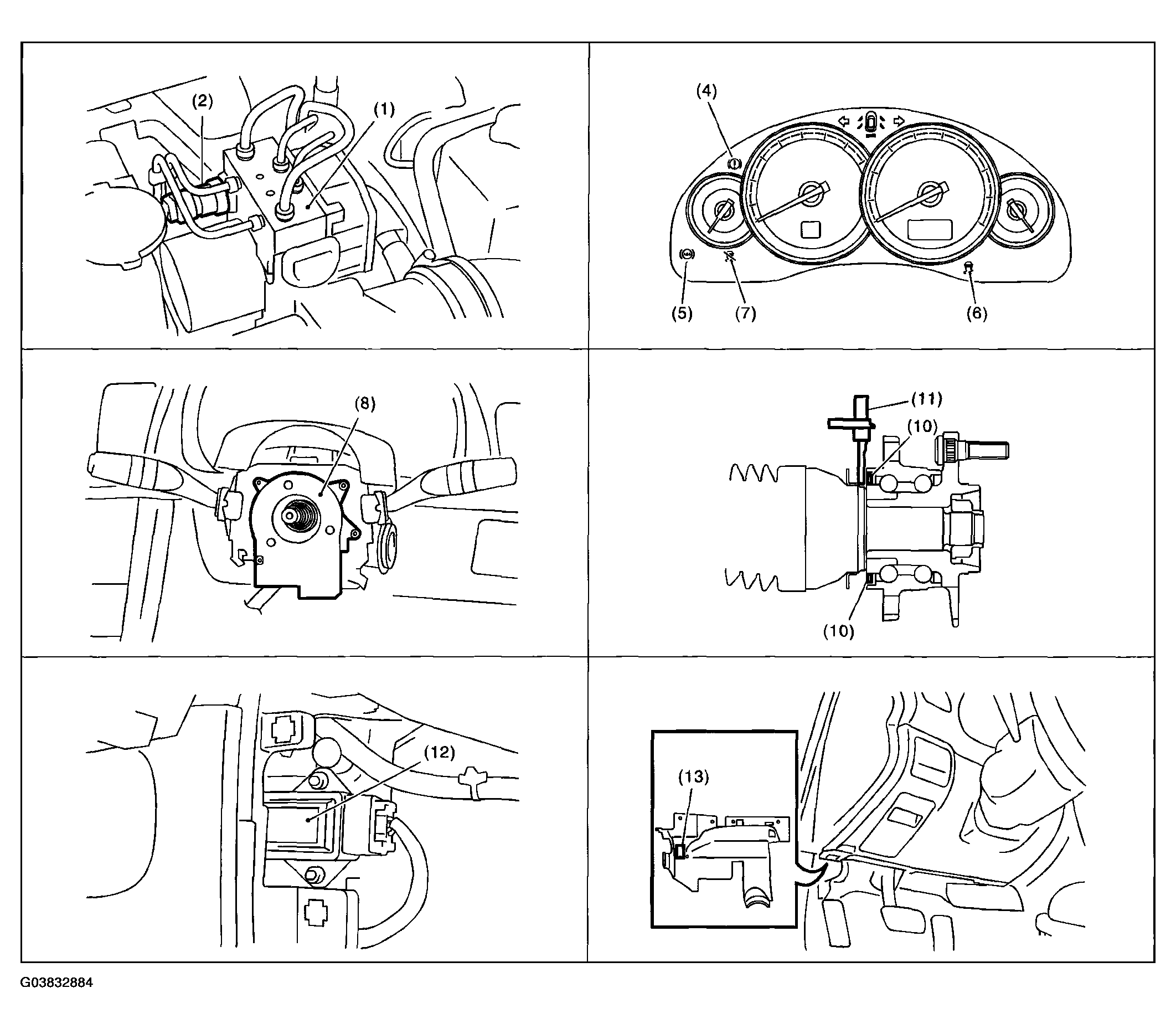

Fig 2: Locating ABS Electrical Components Position (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
