Yaw Rate and Lateral G Sensor: Removal

1. Disconnect the ground cable from battery.
2. Remove the console box.

   < Ref. to CONSOLE BOX . >

3. Disconnect the connector from the yaw rate and lateral G sensor.
4. Remove the yaw rate and lateral G sensor.

CAUTION: Do not drop or bump the yaw rate and lateral G sensor.

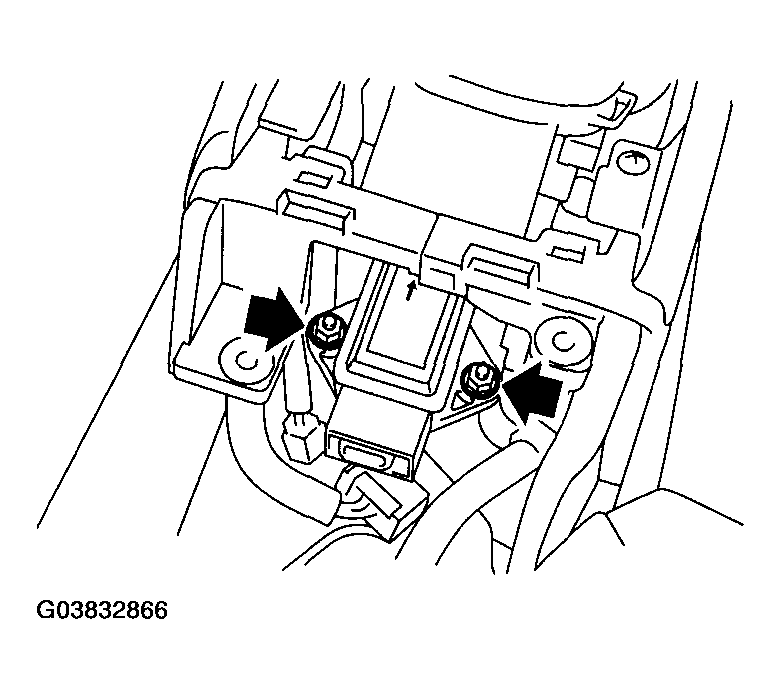

Fig 1: Removing Yaw Rate And Lateral G Sensor

Courtesy of SUBARU OF AMERICA, INC.
