Combination Meter System: Inspection: Self-Diagnosis
The self-diagnosis (checking of each meter, warning light, indicator, illumination, LCD, buzzer sound) of combination meter can be performed in the following procedure.

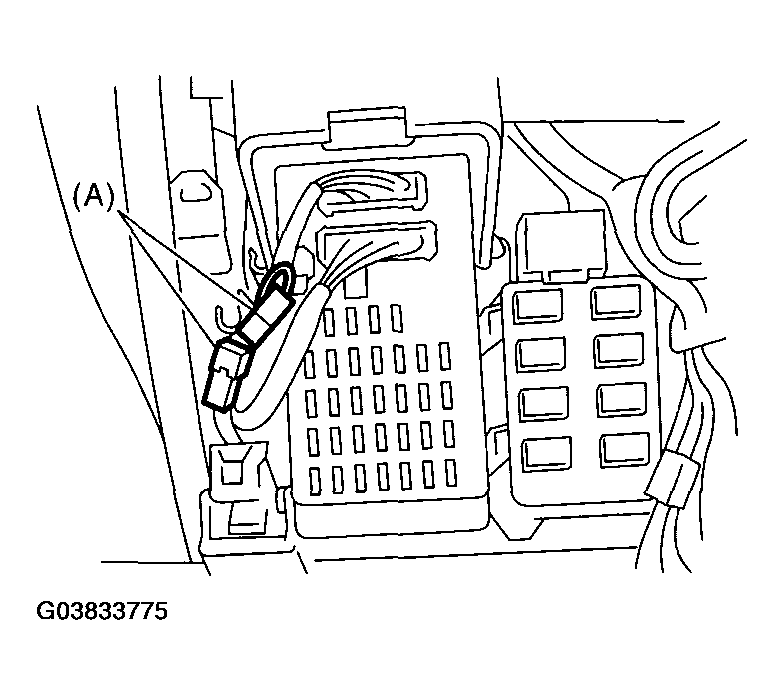

- Connect the diagnostic connector (A) near the fuse & relay box.
- Turn the ignition switch to ON.
- While meter indicator needle deflecting, press the odo/trip meter knob twice.
NOTE:
When odo/trip meter knob is pressed only once, display mode is shifted to DTC display mode. < Ref. to
, DTC DISPLAY MODE , INSPECTION, Combination Meter System. >
When the self-diagnosis function is operated, the checking of warning light, indicator, and LCD display is performed, hereafter, every pressing the odo/trip meter knob, the operation check is performed in the order of meter, illumination and buzzer. < Ref. to , LIST OF SELF-DIAGNOSIS MODE OPERATION , INSPECTION, Combination Meter System.> To cancel the self-diagnosis mode, set the ignition switch to OFF or disconnect the diagnosis connector.
NOTE:
When the engine starts during diagnosis, the self-diagnosis mode is not cancelled, however, once the vehicle starts driving, the self-diagnosis mode is cancelled automatically for safety.
