Lubrication (H4DOTC)
›
General Description
›
Components With Torque Specifications
Components With Torque Specifications

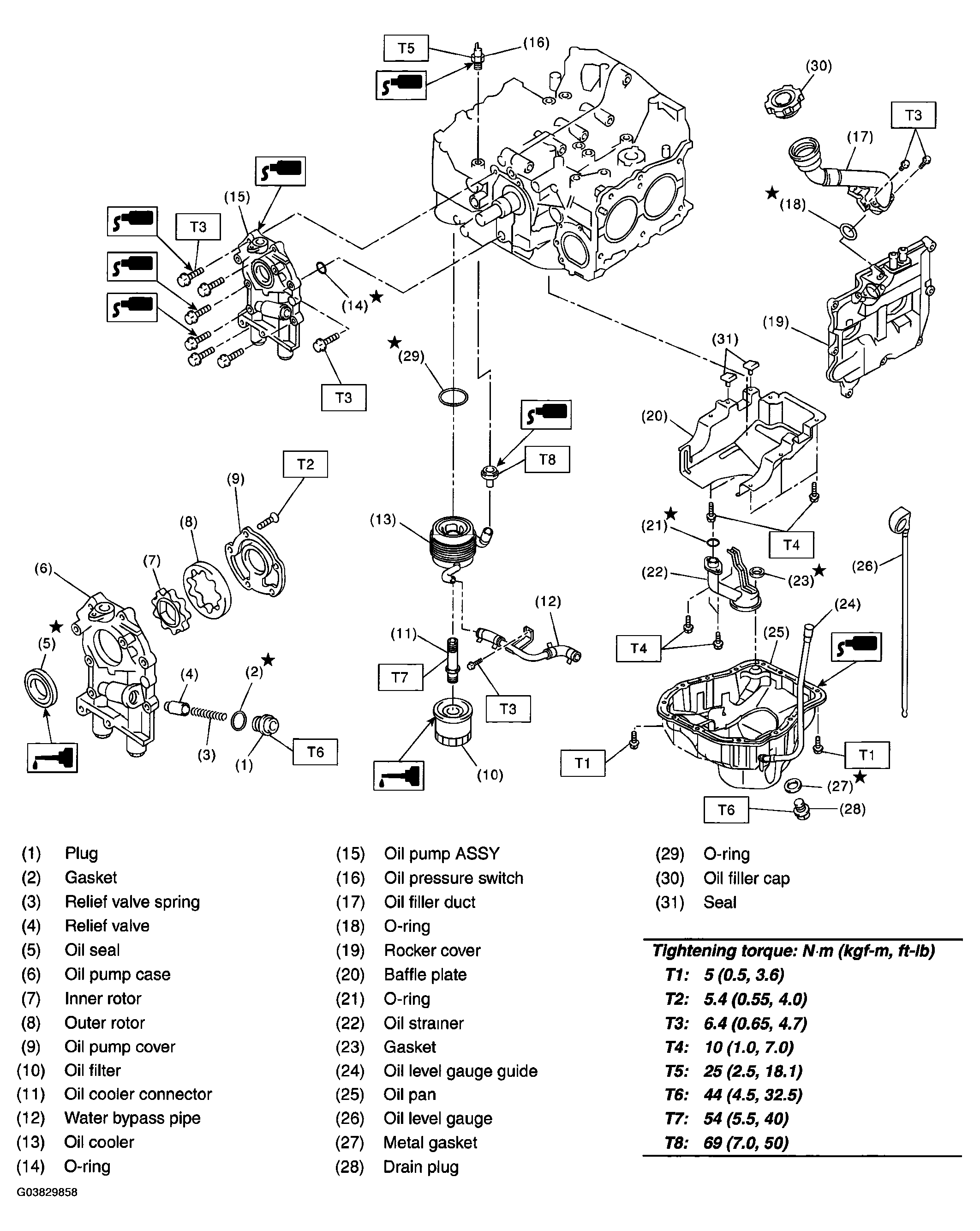

Fig 1: Exploded View Of Lubrication Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
