Section 16 (Intake (Induction) (H6DO))
›
General Description
›
Components With Torque Specifications
Components With Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

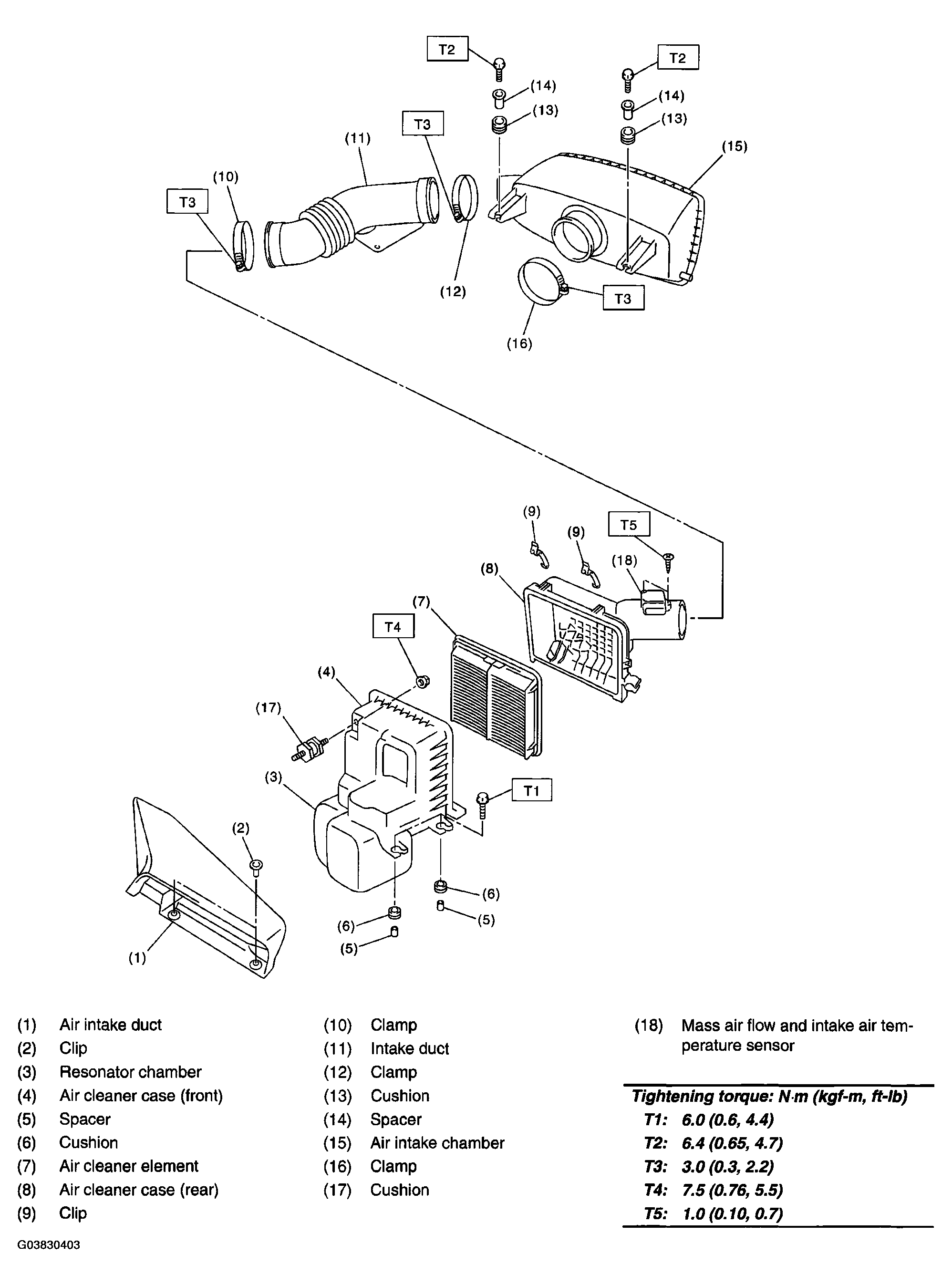

Fig 1: Exploded View Of Intake (Induction) Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
