Section 17 (Engine Mechanical (H6DO))
›
General Description
›
Components With Torque Specifications
›
Engine Mounting
Engine Mounting
WARNING:
This page is about a different variant/trim than selected.

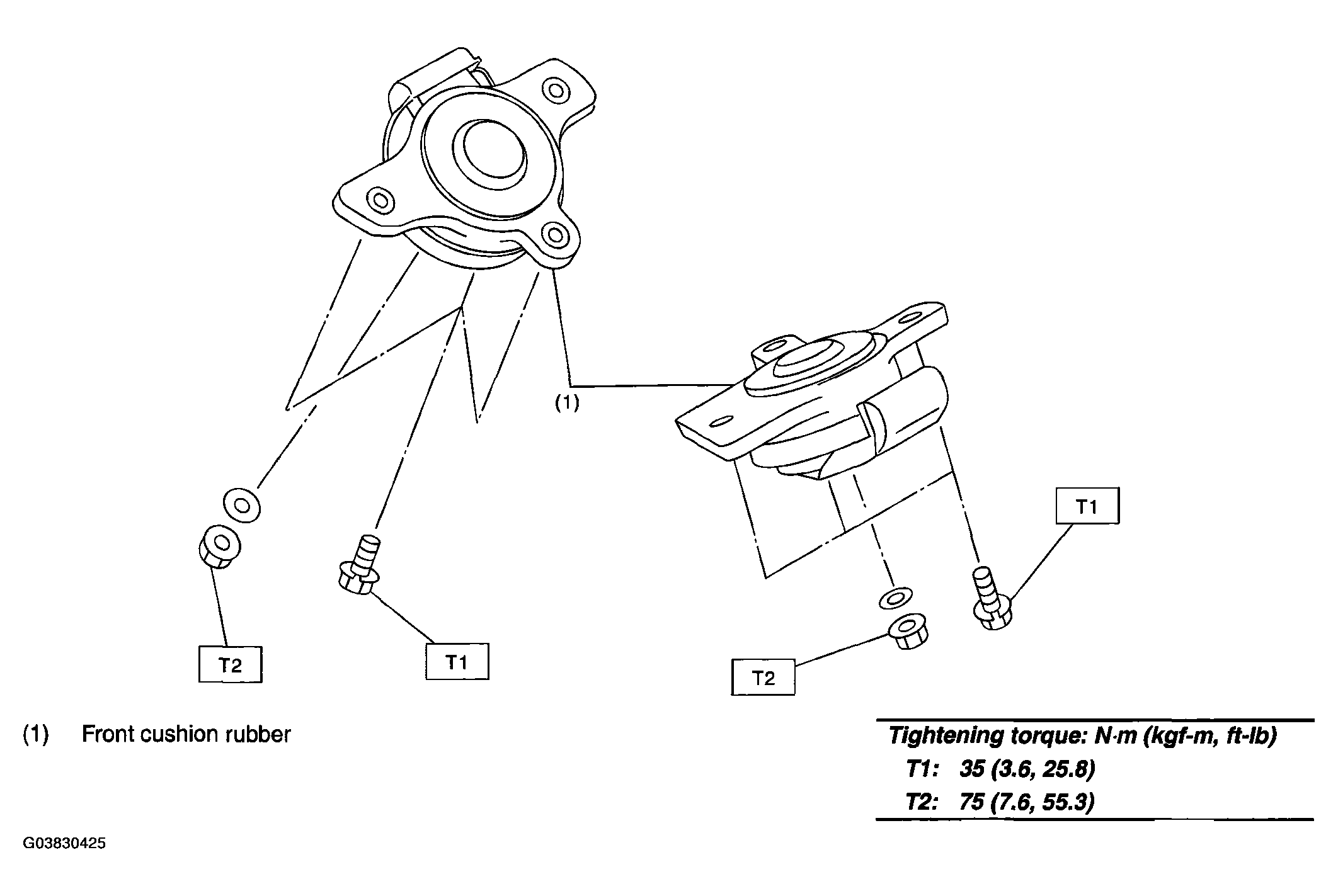

Fig 1: Exploded View Of Engine Mounting With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
