Section 17 (Engine Mechanical (H6DO))
›
General Description
›
Components With Torque Specifications
›
Timing Chain Cover
Timing Chain Cover
WARNING:
This page is about a different variant/trim than selected.

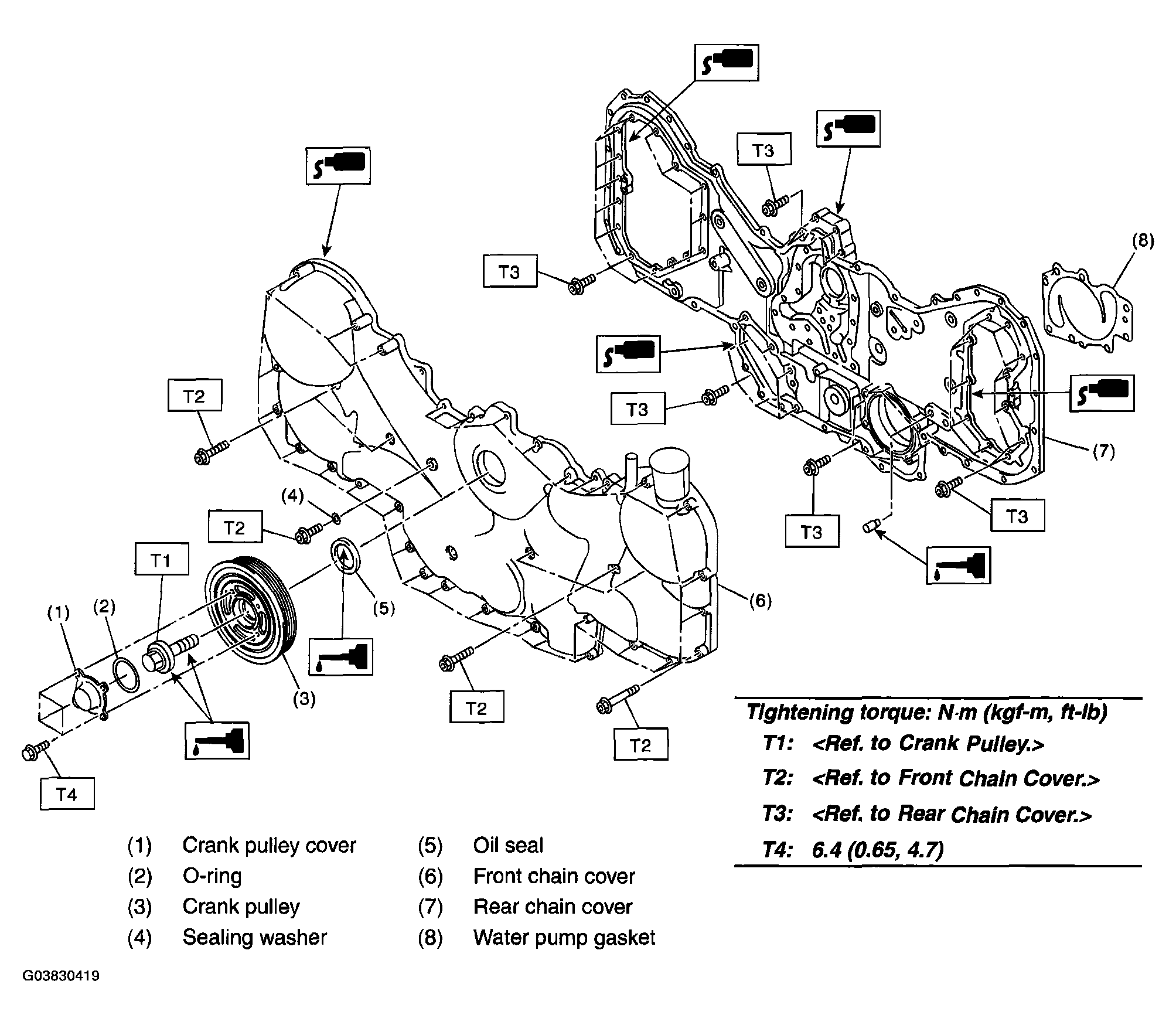

Fig 1: Exploded View Of Timing Chain Cover With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
