Timing Chain

WARNING: This page is about a different variant/trim than selected.

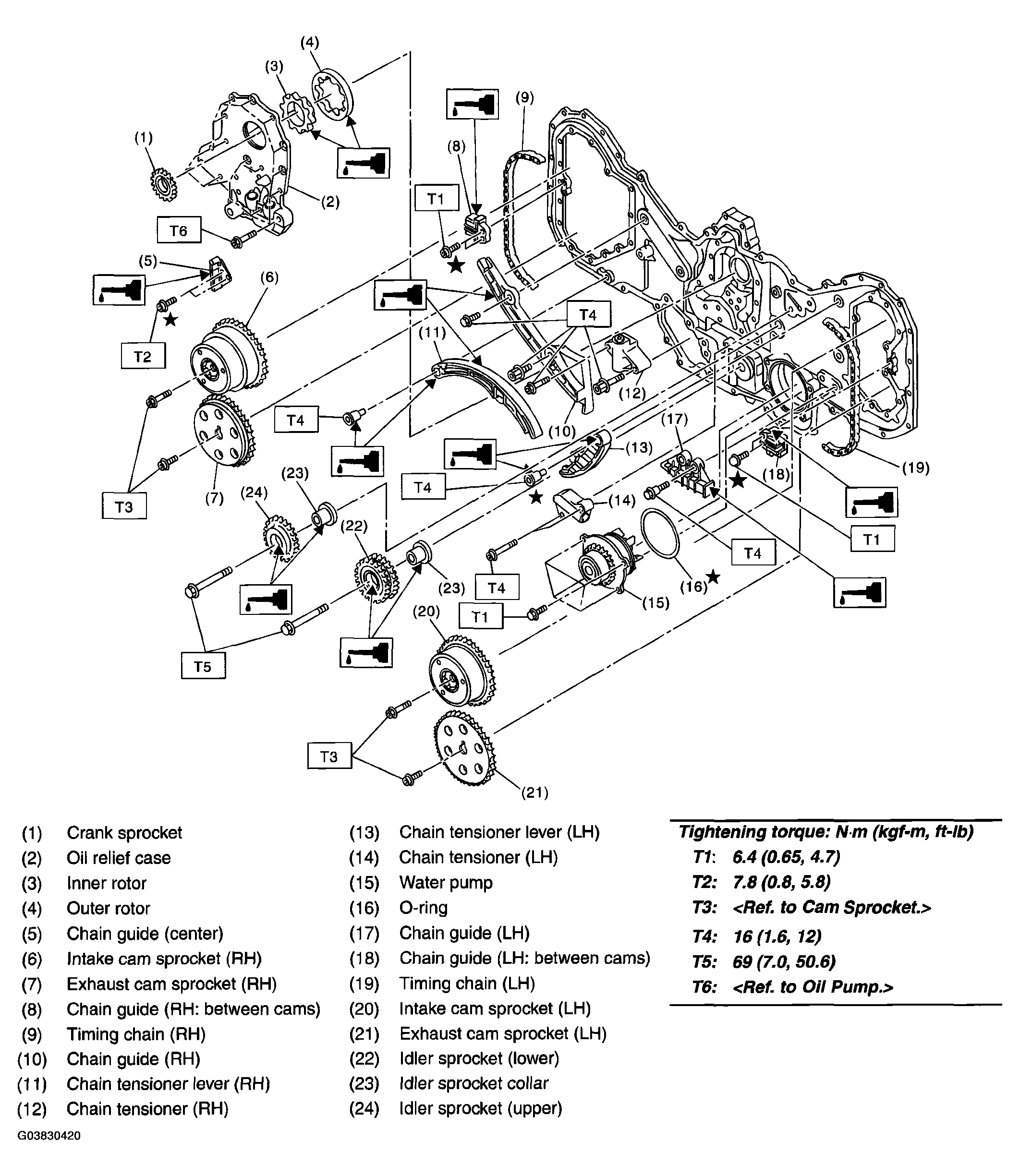

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G03830420Courtesy of SUBARU OF AMERICA, INC.
