Section 3 (Intake (Induction) (H4SO))
›
General Description
›
Components With Torque Specifications
›
U5 Model
U5 Model
WARNING:
This page is about a different variant/trim than selected.

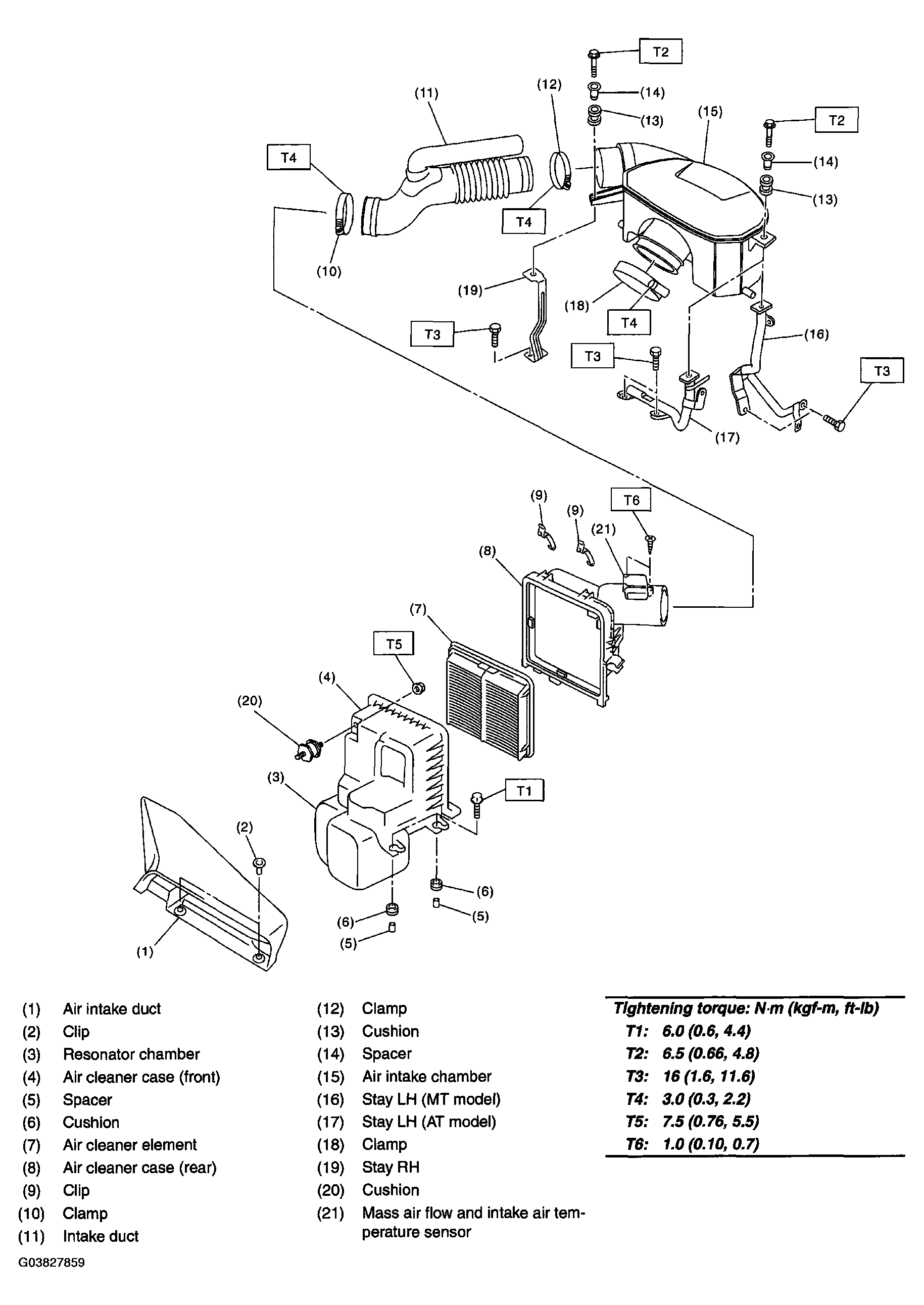

Fig 1: Intake (Induction) Replacement Components With Torque Specifications (H4SO U5)
Courtesy of SUBARU OF AMERICA, INC.
