RH side

  1. Before installing front oxygen sensor, apply anti-seize compound only to the threaded portion of front oxygen sensor to make the next removal easier.

    Anti-seize compound:

    SS-30 JET LUBE

    CAUTION: Never apply anti-seize compound to the protector of front oxygen sensor.
  2. Install the front oxygen sensor.

    Tightening torque:

    21 N.m (2.1 kgf-m, 15.2 ft-lb)

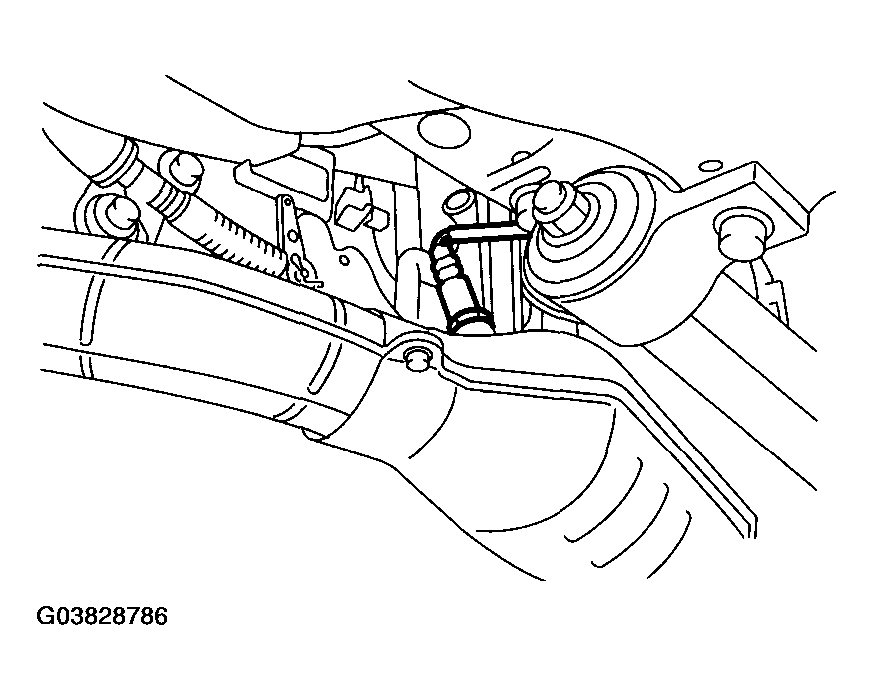

    Fig 1: Installing Front Oxygen Sensor
    G03828786Courtesy of SUBARU OF AMERICA, INC.
  3. Install the front oxygen sensor harness to bracket.

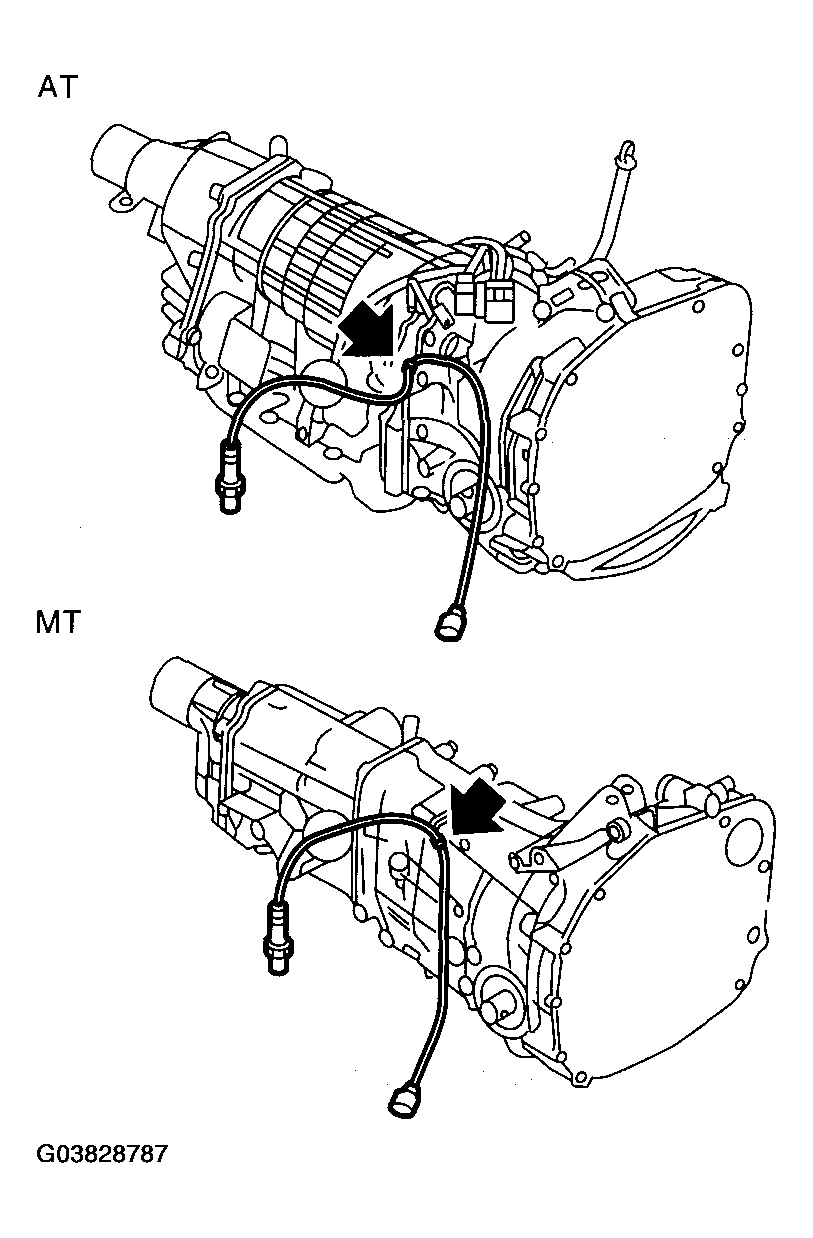

    Fig 2: Installing Front Oxygen Sensor Harness To Bracket
    G03828787Courtesy of SUBARU OF AMERICA, INC.
  4. Lower the vehicle.
  5. Connect the connector of front oxygen sensor.

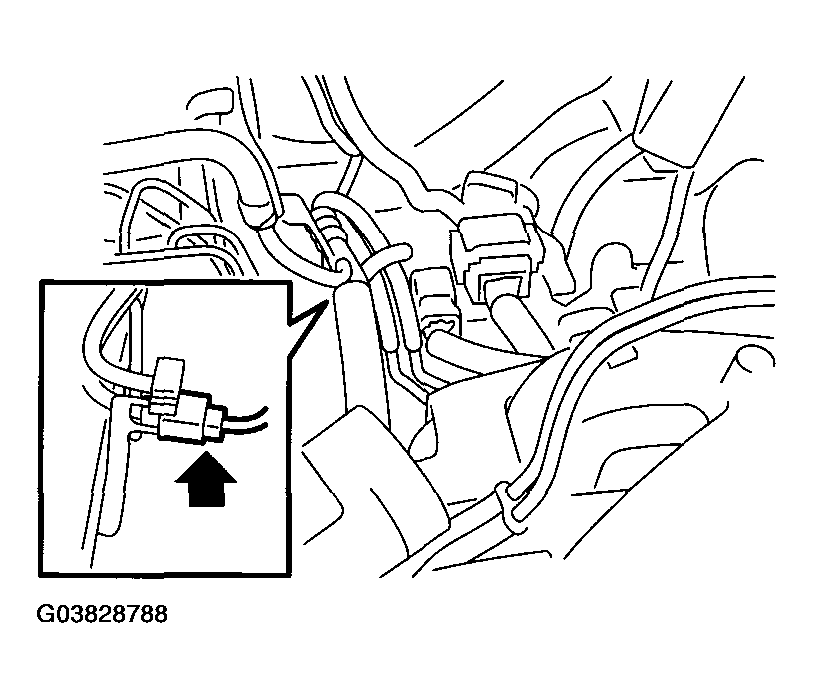

    Fig 3: Connecting Connector Of Front Oxygen Sensor
    G03828788Courtesy of SUBARU OF AMERICA, INC.
  6. Connect the battery ground cable to battery.

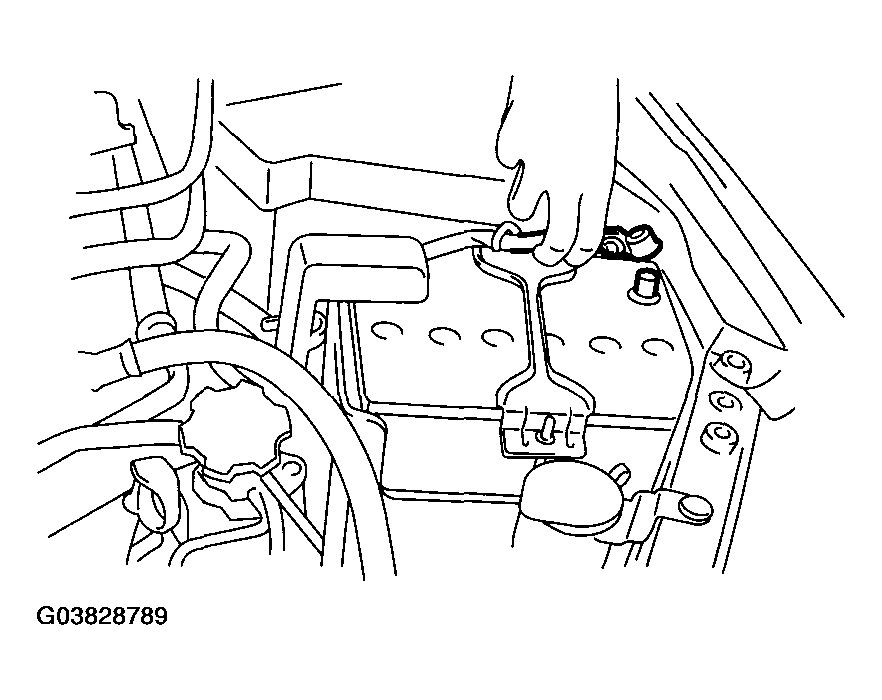

    Fig 4: Connecting Battery Ground Cable To Battery
    G03828789Courtesy of SUBARU OF AMERICA, INC.
