Intake Manifold: Removal

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

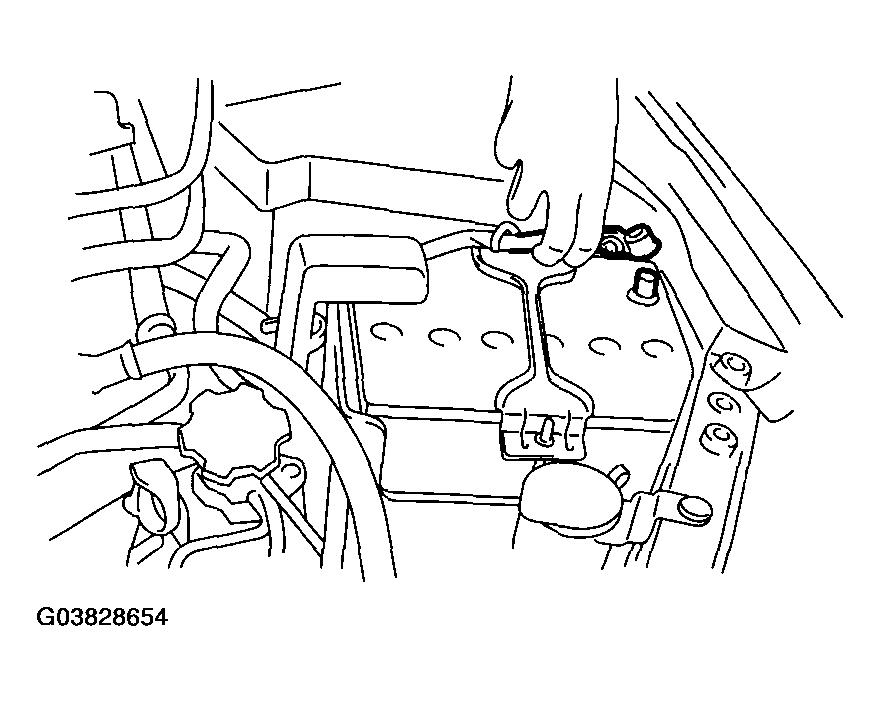

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case and air intake chamber. < Ref. to REMOVAL , Air Cleaner Case.> < Ref. to REMOVAL , Air Intake Chamber. >
Remove the generator. < Ref. to REMOVAL , Generator. >
Disconnect the spark plug cords from spark plugs.

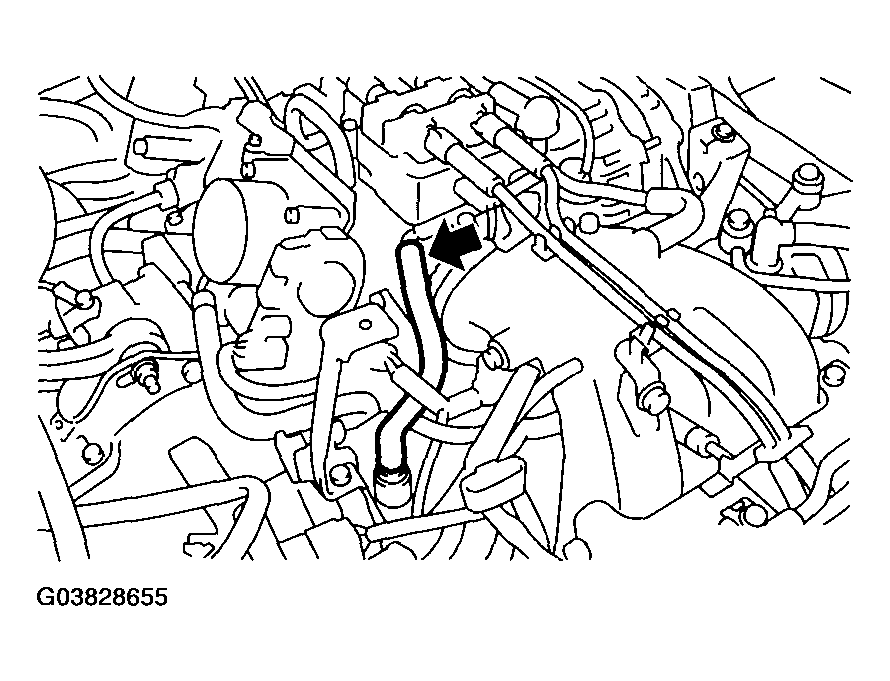

Disconnect the PCV hose from intake manifold.

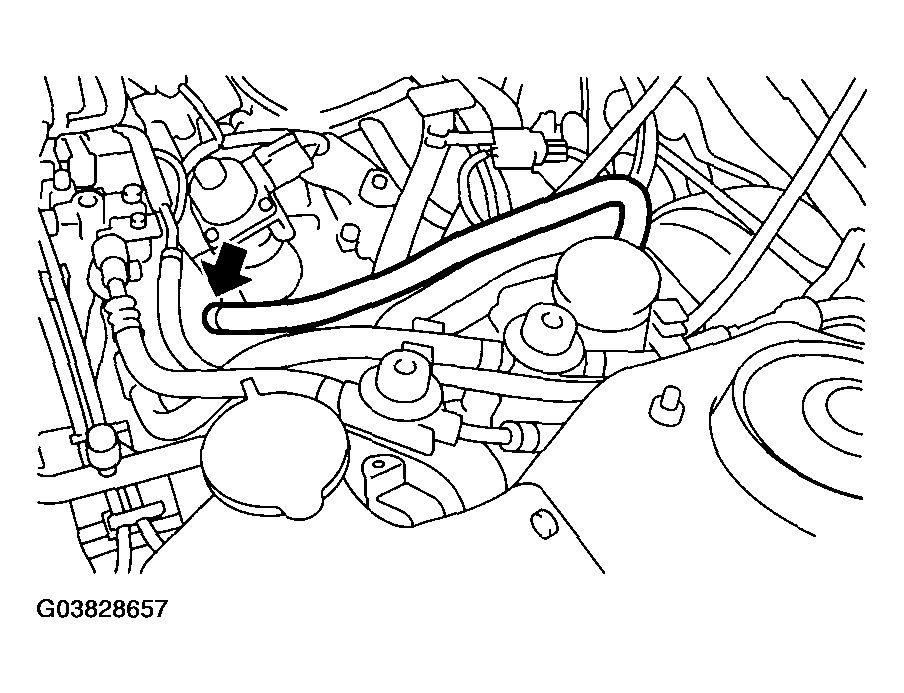

Fig 2: Disconnecting PCV Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

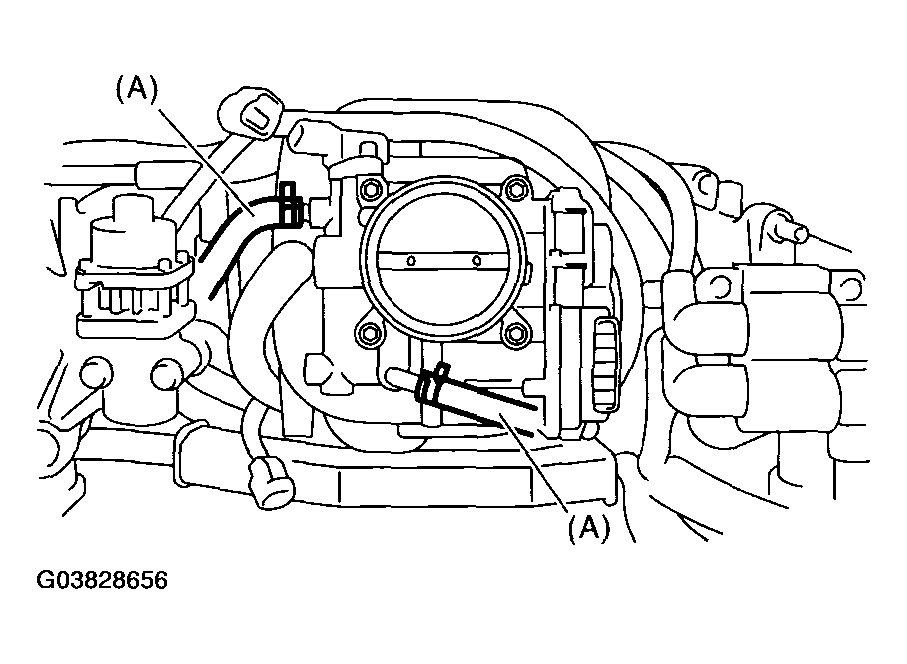

Disconnect the engine coolant hoses (A) from throttle body.

Fig 3: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake booster hose.

Fig 4: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

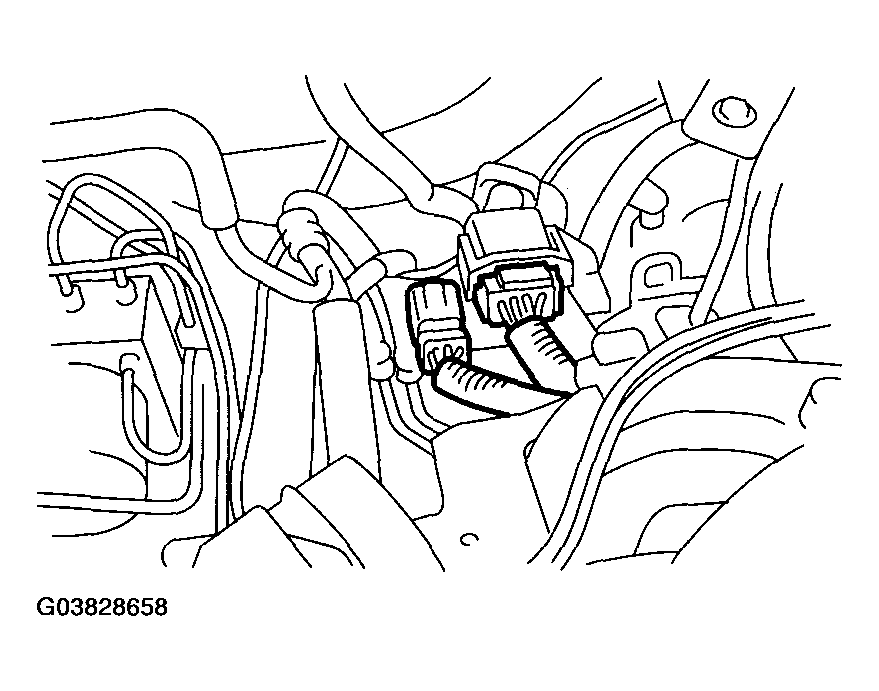

Disconnect the engine harness connectors from bulkhead harness connectors.

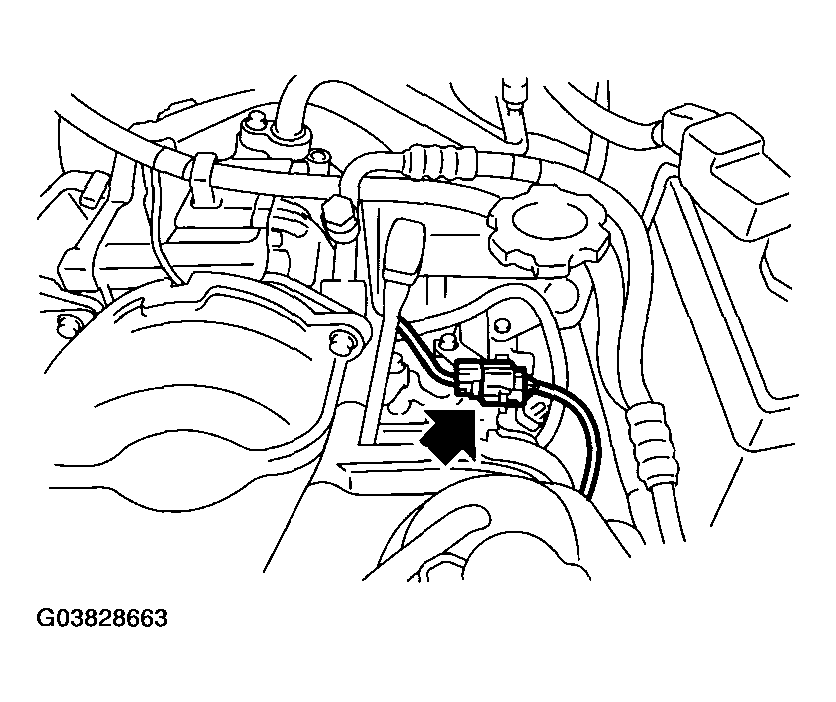

Fig 5: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the knock sensor connector.

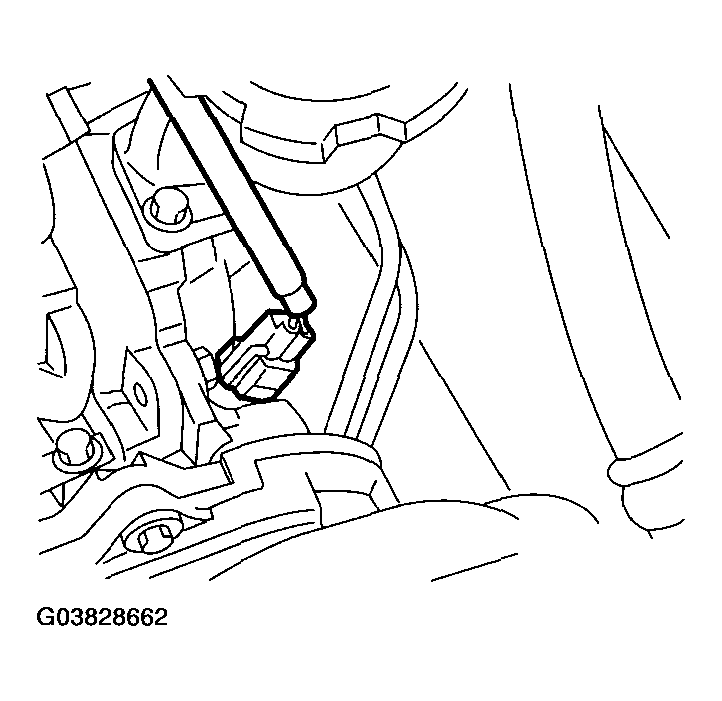

Fig 6: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

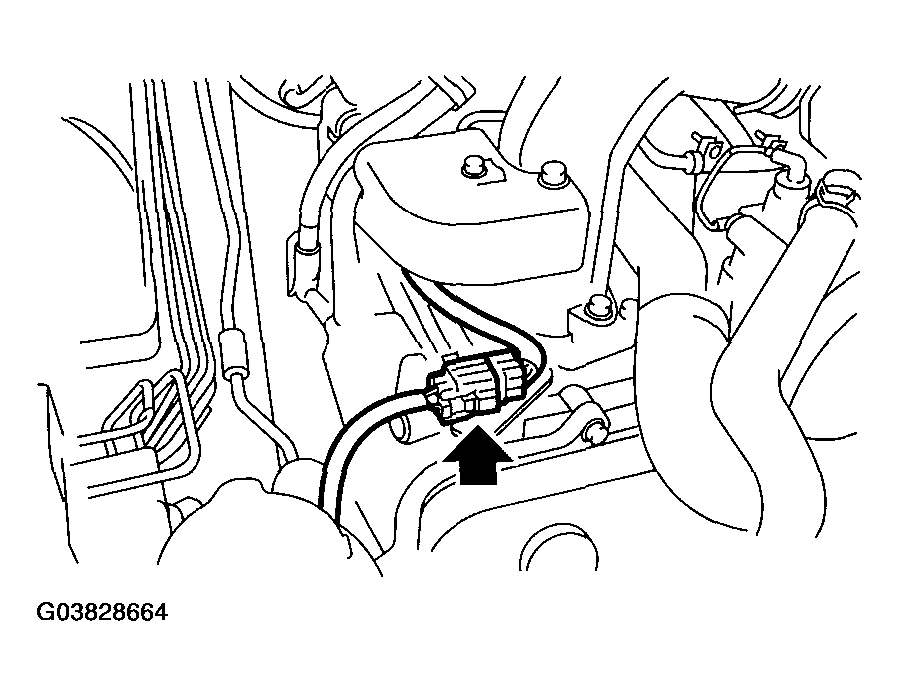

Disconnect the connector from crankshaft position sensor.

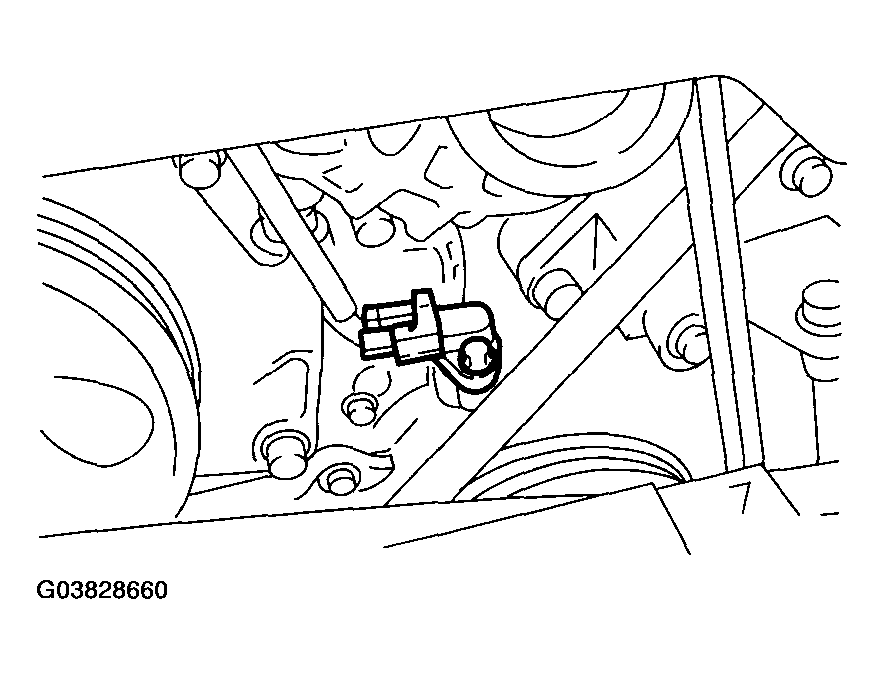

Fig 7: Disconnecting Connector From Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from power steering pump switch (A).
Disconnect the connector from oil pressure switch (B).

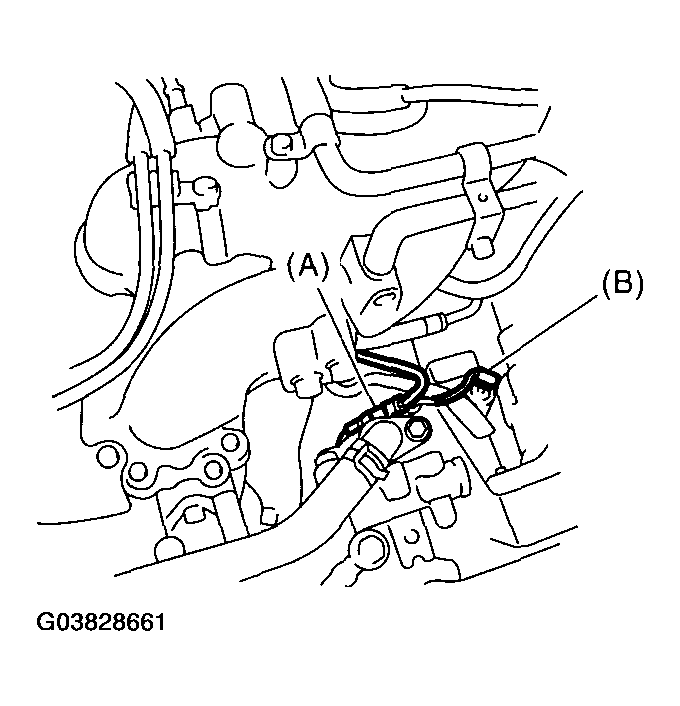

Fig 8: Disconnecting Connector From Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor.

Fig 9: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from front oxygen (A/F) sensor.
- LH side

  Fig 10: Disconnecting Connector From Front Oxygen (A/F) Sensor (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

  Fig 11: Disconnecting Connector From Front Oxygen (A/F) Sensor (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from engine coolant temperature sensor.

Fig 12: Disconnecting Connectors From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe from intake manifold and cylinder head.

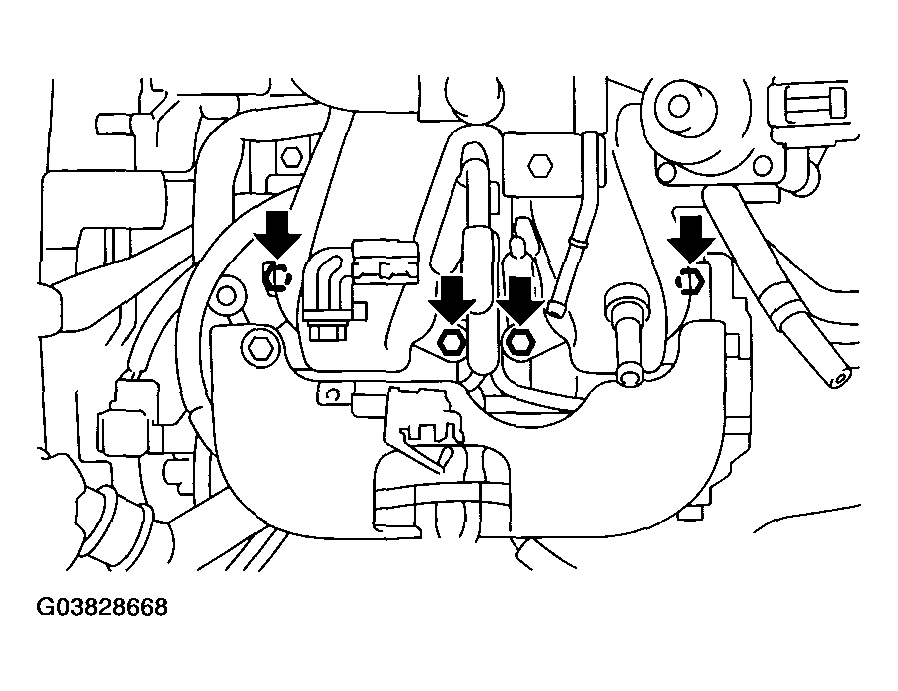

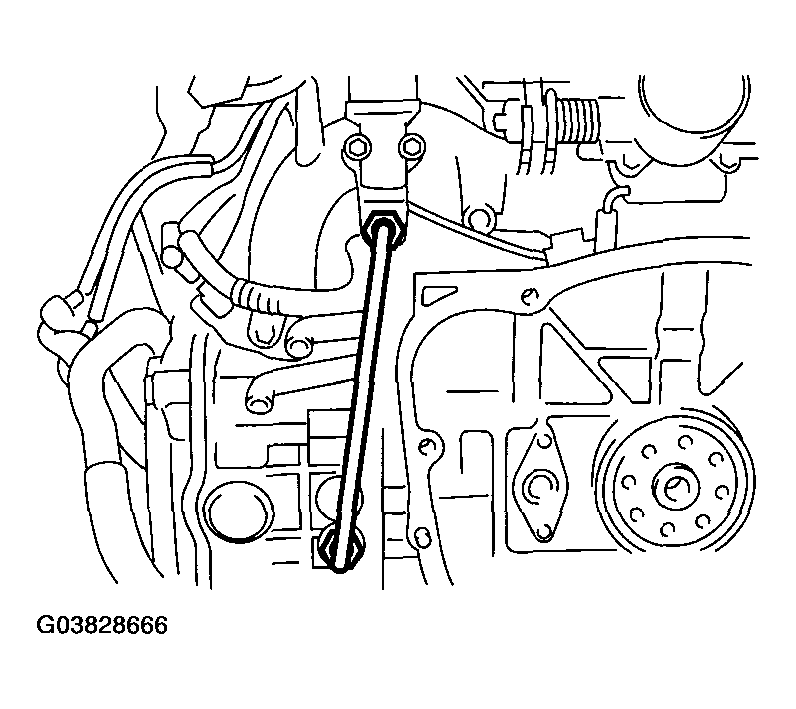

Fig 13: Removing EGR Pipe From Intake Manifold And Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the fuel hoses from fuel pipes using ST.
WARNING:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
ST 42099AE000 CONNECTOR REMOVER

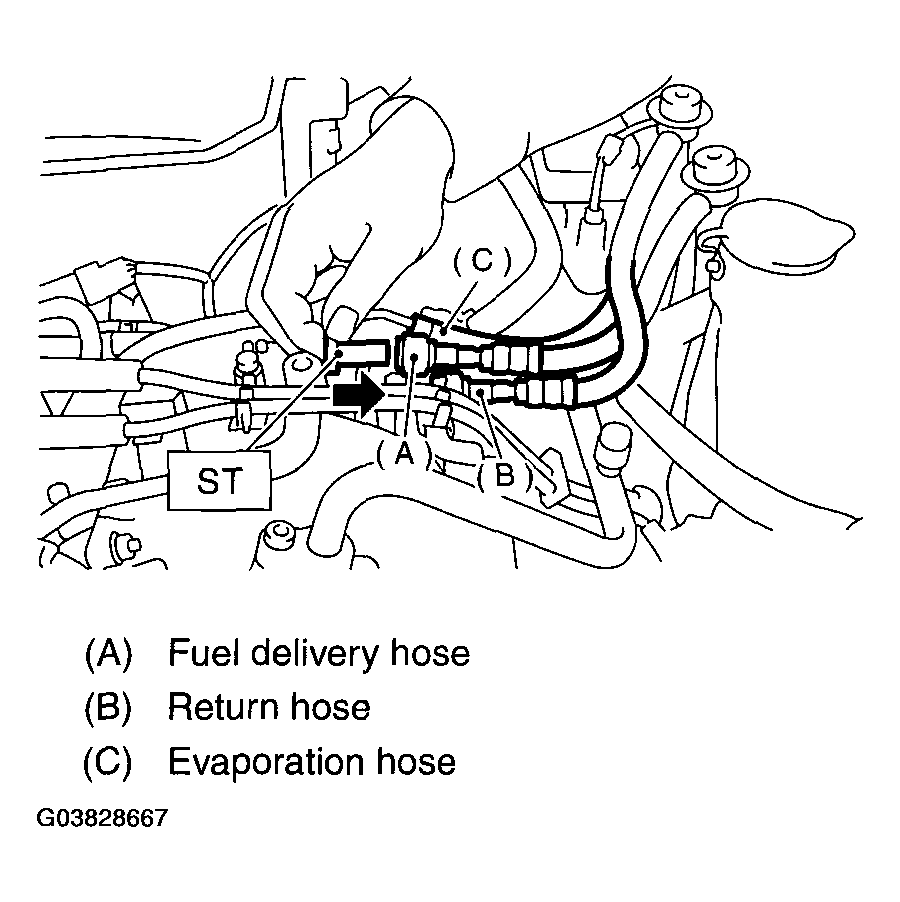

Fig 14: Disconnecting Fuel Hoses From Fuel Pipes Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure intake manifold to cylinder head.

Fig 15: Removing Bolts To Secure Intake Manifold To Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
