Ignition (H4SO)
›
General Description
›
Components With Torque Specifications
›
Except For U5 Model
Except For U5 Model

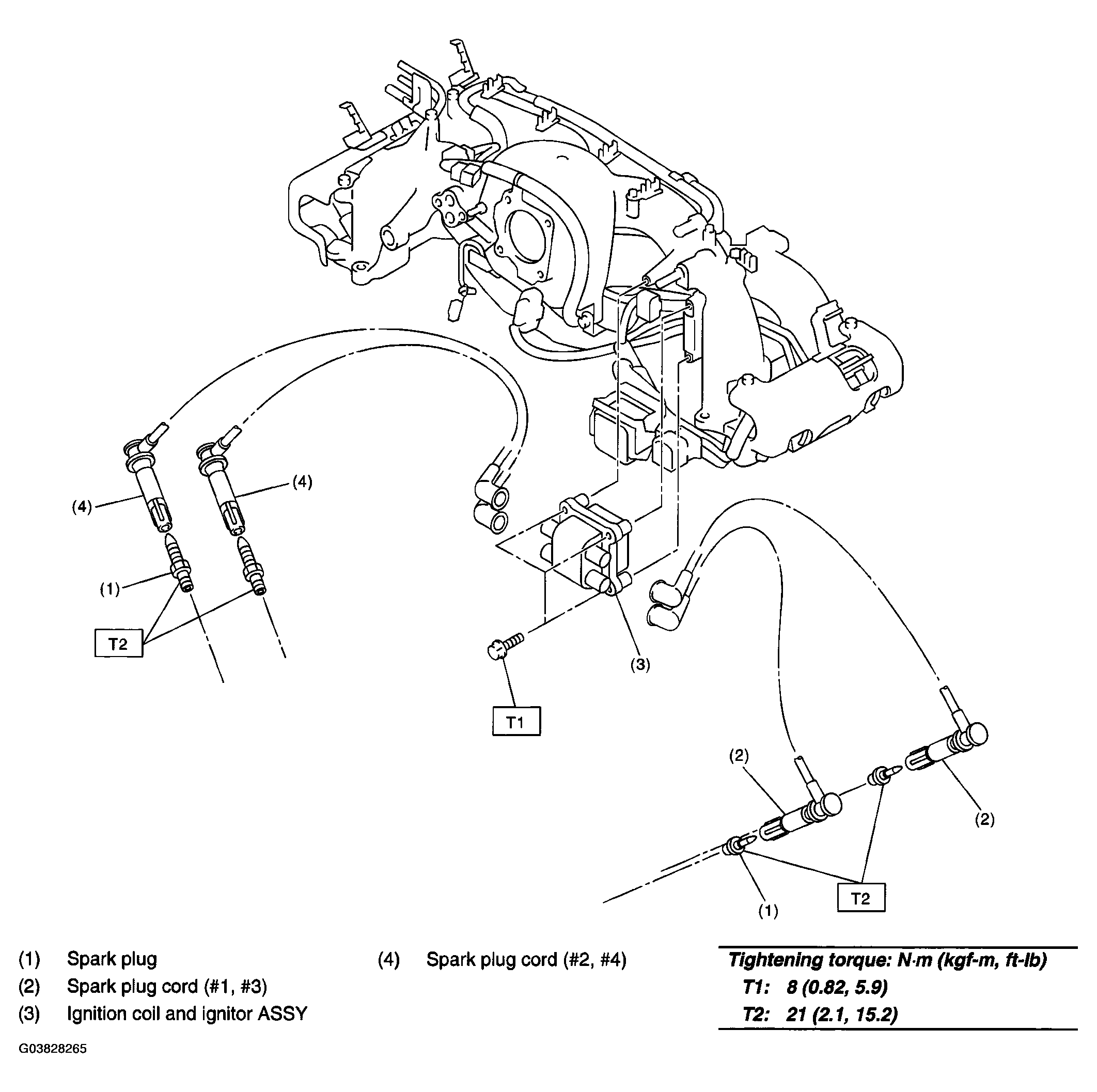

Fig 1: Ignition (H4SO) Replacement Components With Torque Specifications (Except For U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
