Extension Case: Installation

Attach the selected thrust needle bearing to the end surface of reduction drive gear with Vaseline.
NOTE: Install the thrust needle bearing in correct direction.
Install a new gasket.
Install the extension case to transmission case.
Tighten bolts to secure extension case.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

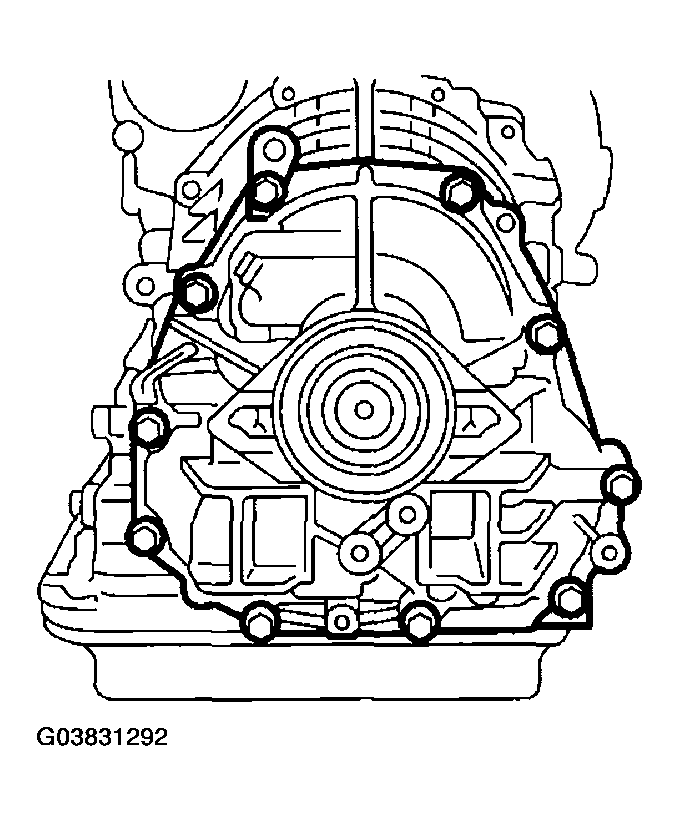

Fig 1: Identifying Transmission Case Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
Tightening torque:

7 N.m (0.7kgf-m, 5.1 ft-lb)

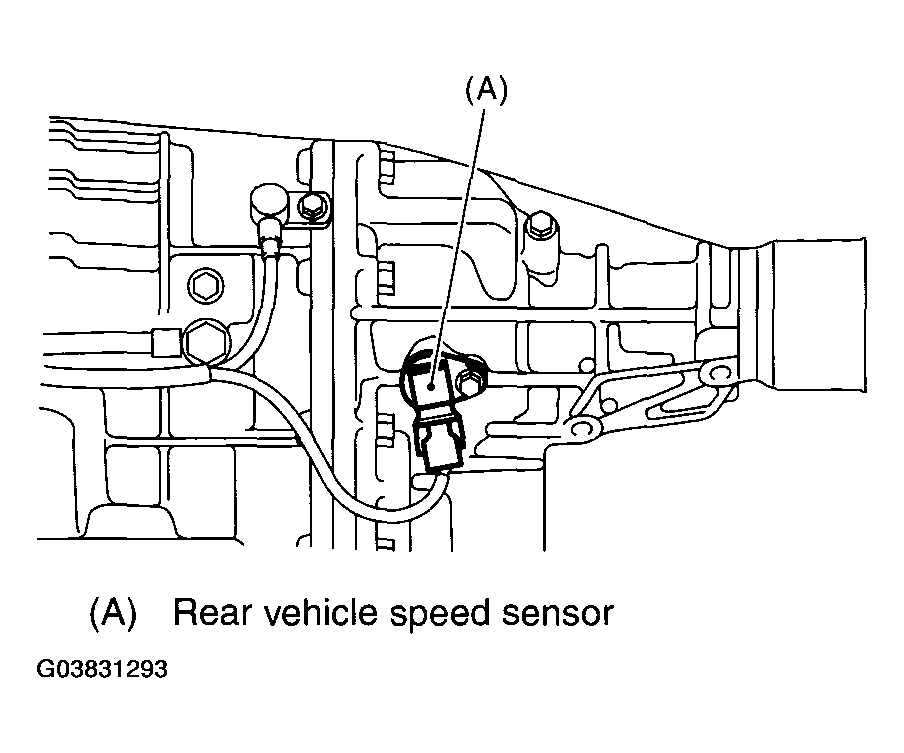

Fig 2: Installing Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly.
< Ref. to , INSTALLATION , Automatic Transmission Assembly. >
