Extension Case: Removal

  1. Remove the transmission assembly.

    < Ref. to , REMOVAL , Automatic Transmission Assembly. >

  2. Remove the rear vehicle speed sensor.

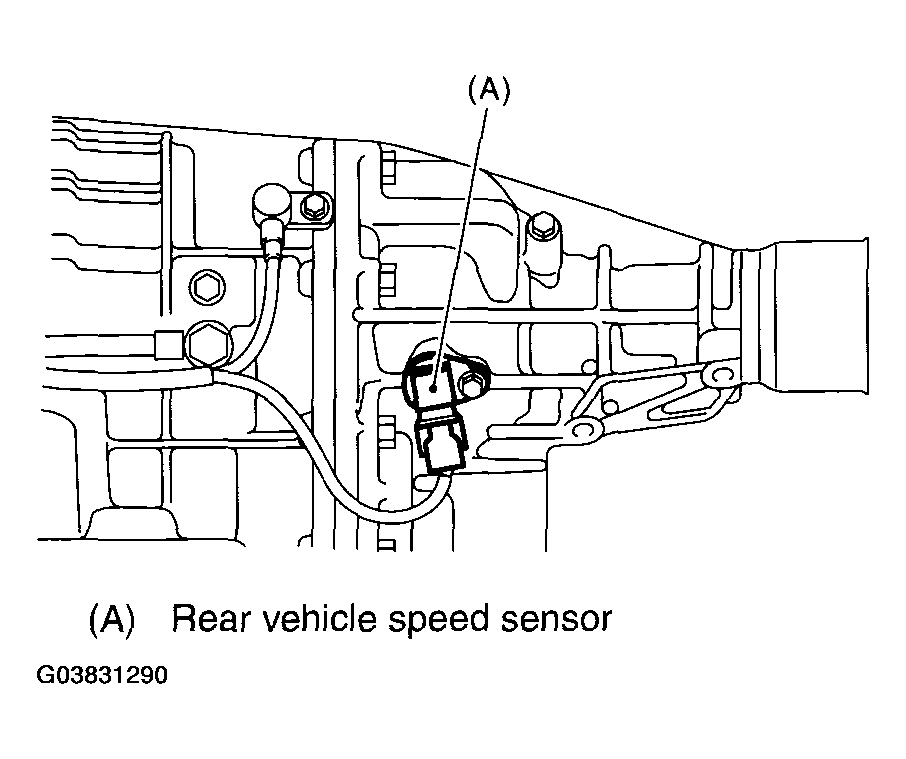

    Fig 1: Removing Rear Vehicle Speed Sensor
    G03831290Courtesy of SUBARU OF AMERICA, INC.
  3. Separate the transmission case and extension case part.
    Fig 2: Identifying Transmission Case
    G03831291Courtesy of SUBARU OF AMERICA, INC.
