Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Oil Pump
Oil Pump

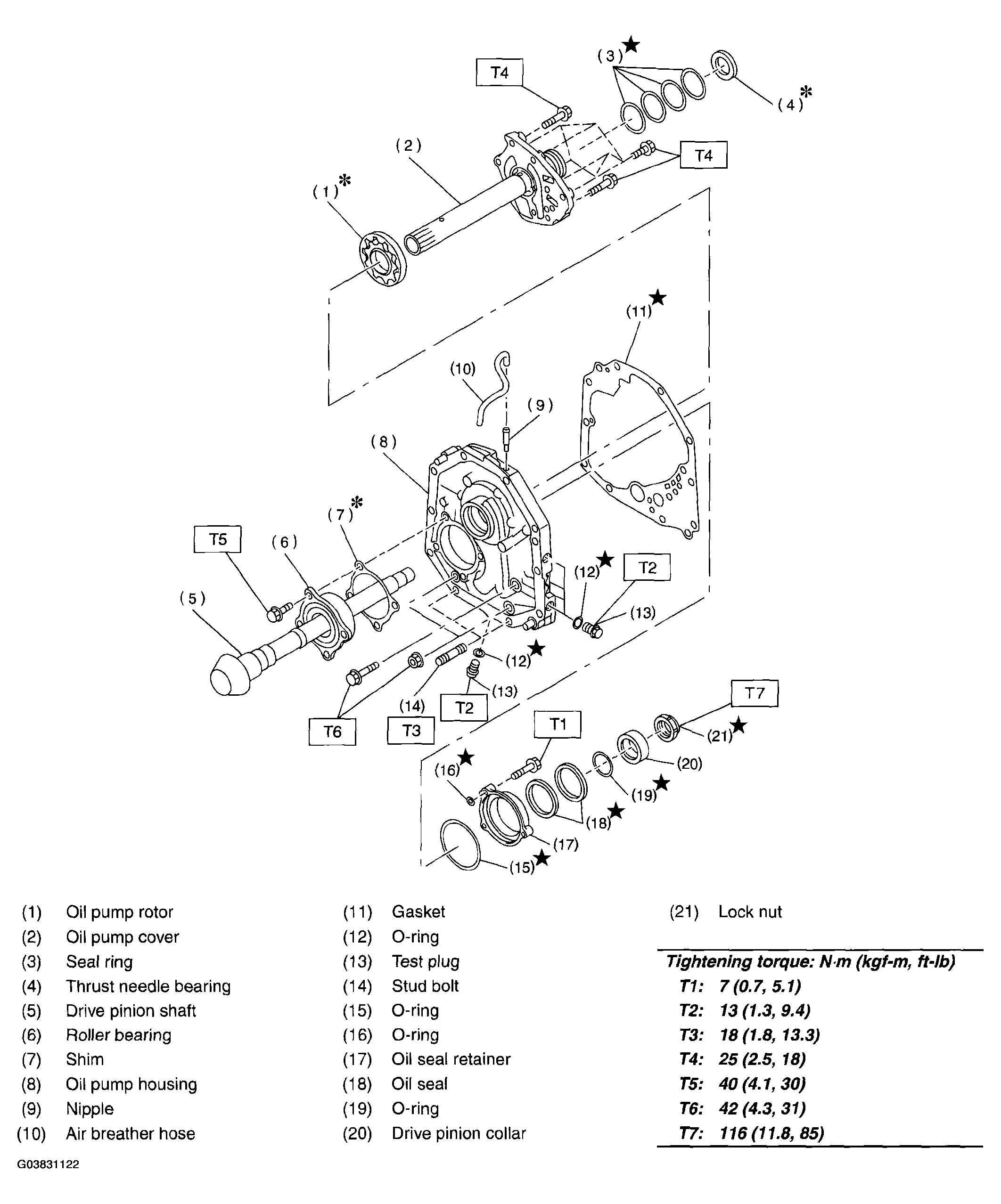

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
