Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Transmission Case And Control Device
Transmission Case And Control Device

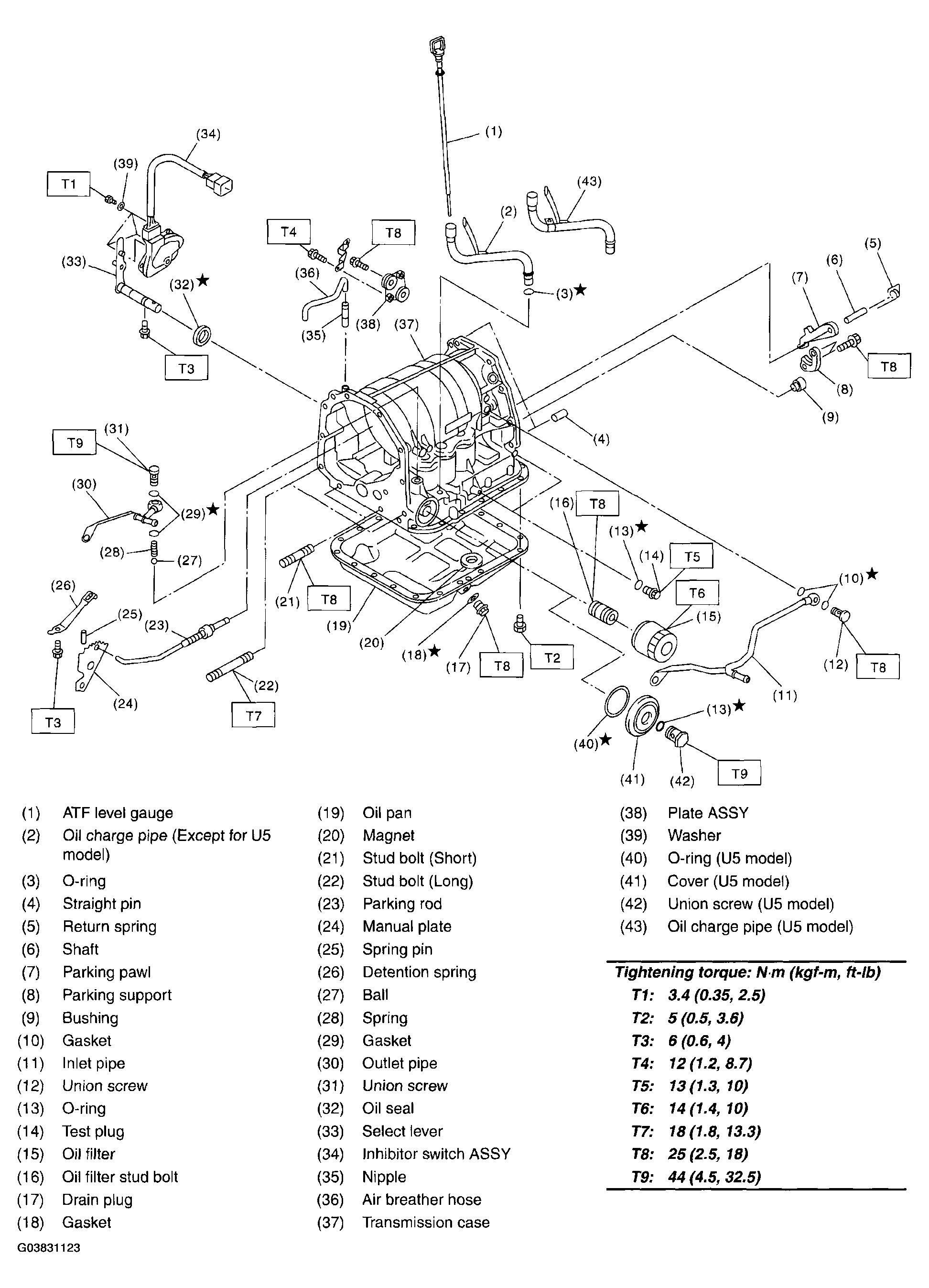

Fig 1: Exploded View Of Transmission Case And Control Device Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
