Inhibitor Switch: Removal

Set the vehicle on a lift.
Set the select lever to "N" range.
Remove the air intake chamber.
< Ref. to REMOVAL , Air Intake Chamber. >
Disconnect the inhibitor switch connector.

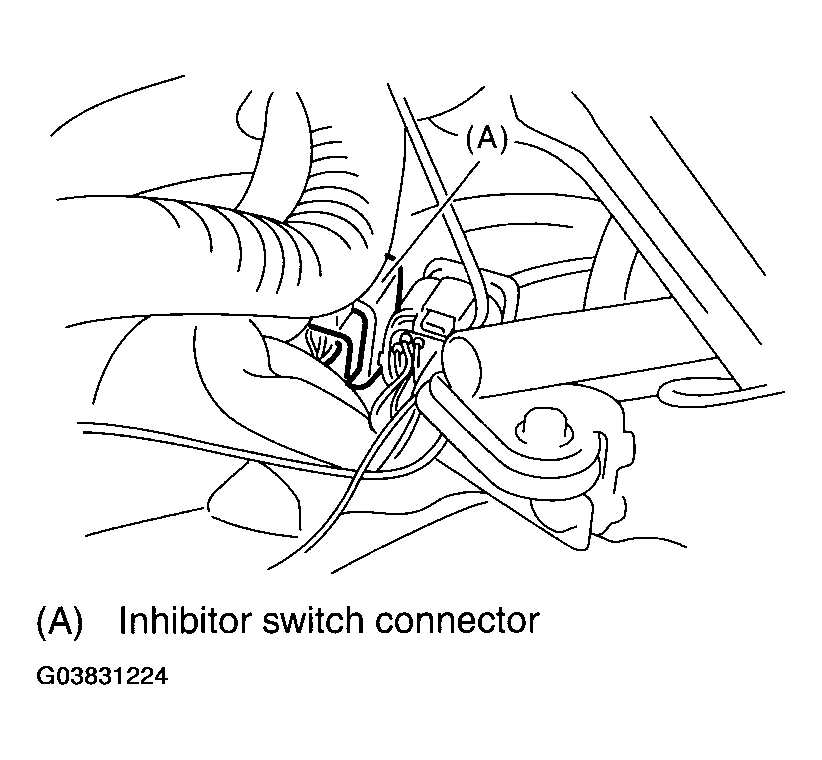

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch connector from stay.
Lift-up the vehicle.
Remove the front and center exhaust pipe. < Ref. to REMOVAL , Front Exhaust Pipe. >
Remove the snap pin and washers from range select lever.

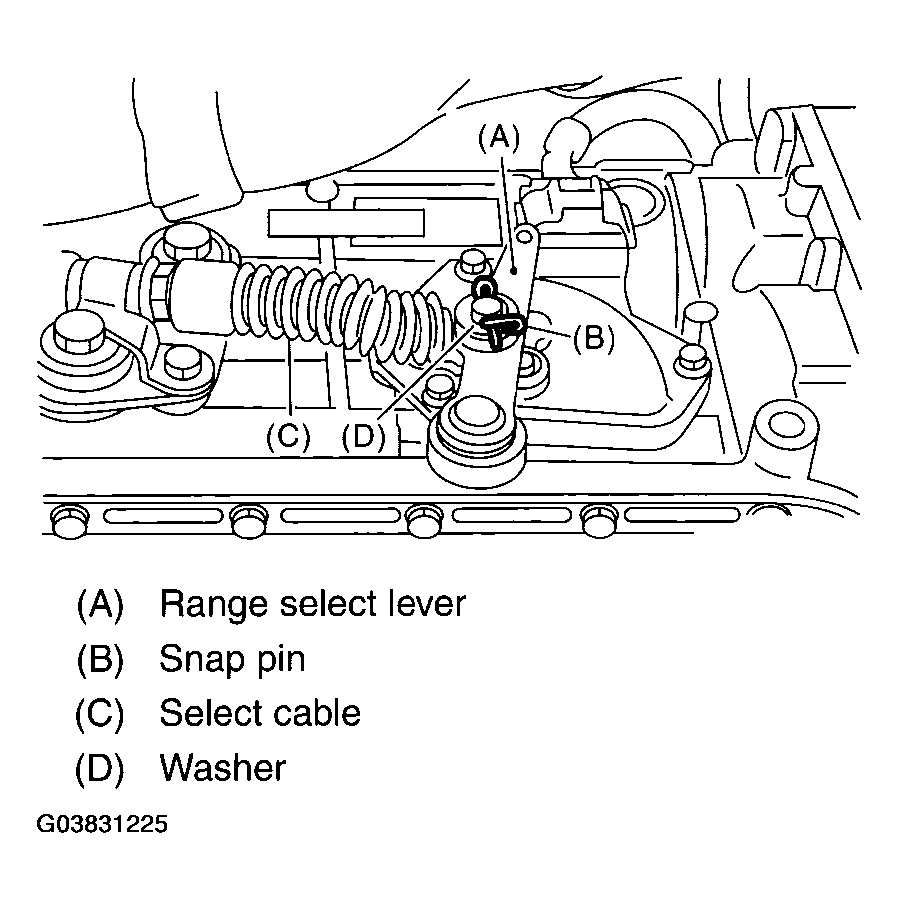

Fig 2: Removing Snap Pin And Washers From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from transmission case.

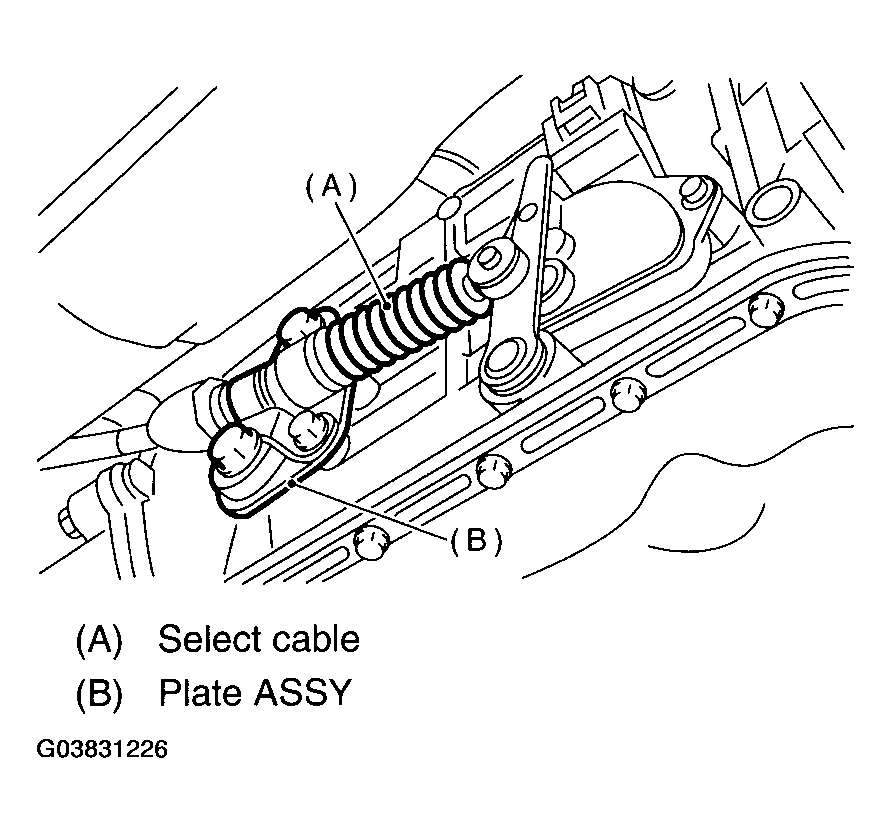

Fig 3: Removing Select Cable From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the three bolts which secure inhibitor switch.

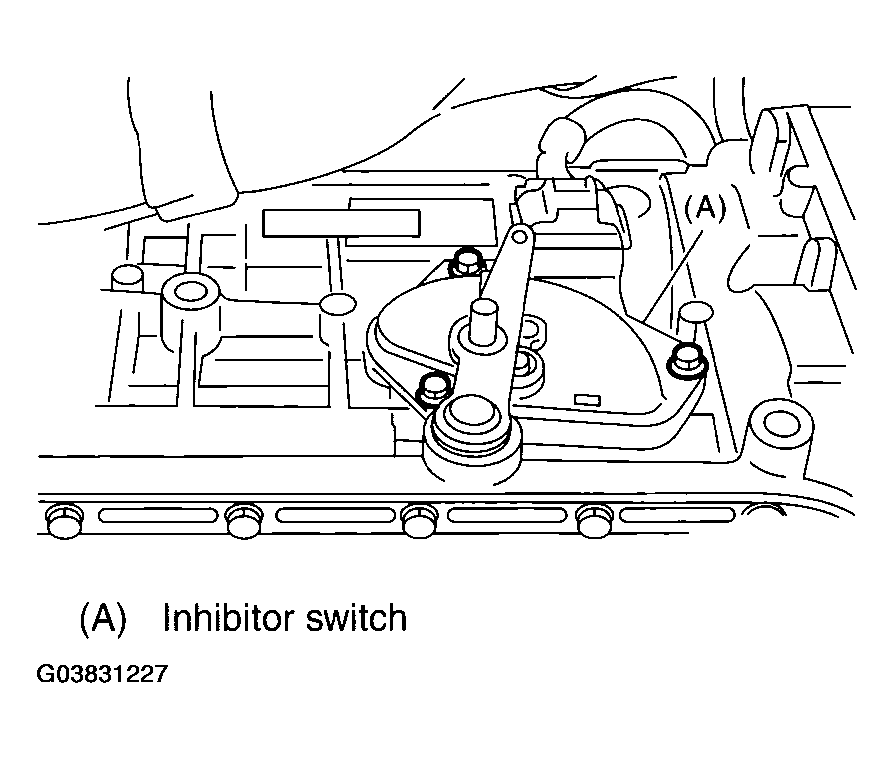

Fig 4: Removing Bolts Which Secure Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Shift the range select lever to parking position (left side).

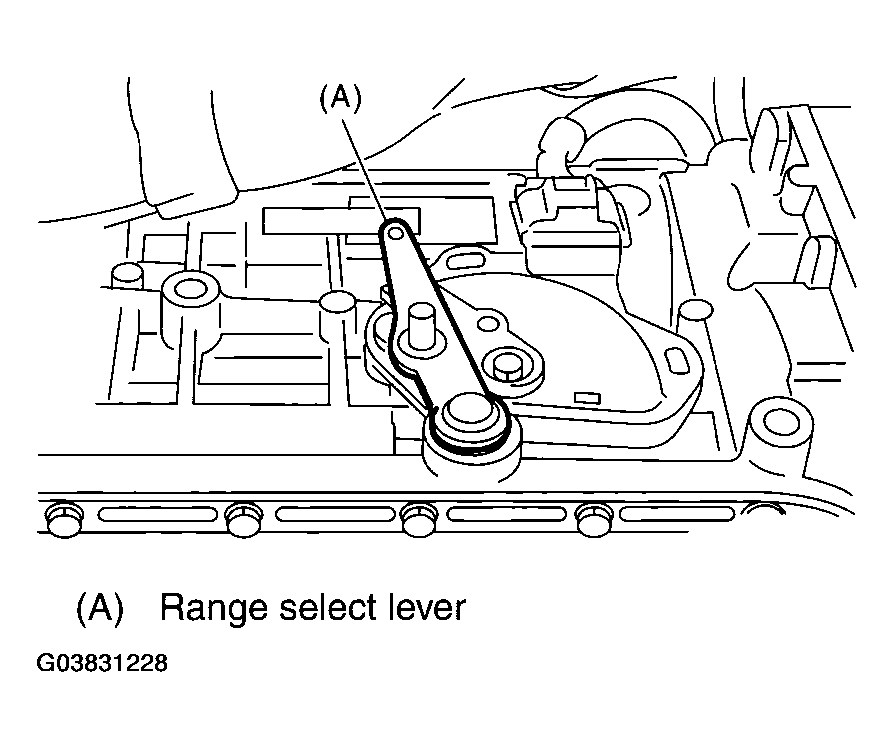

Fig 5: Removing Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from transmission.

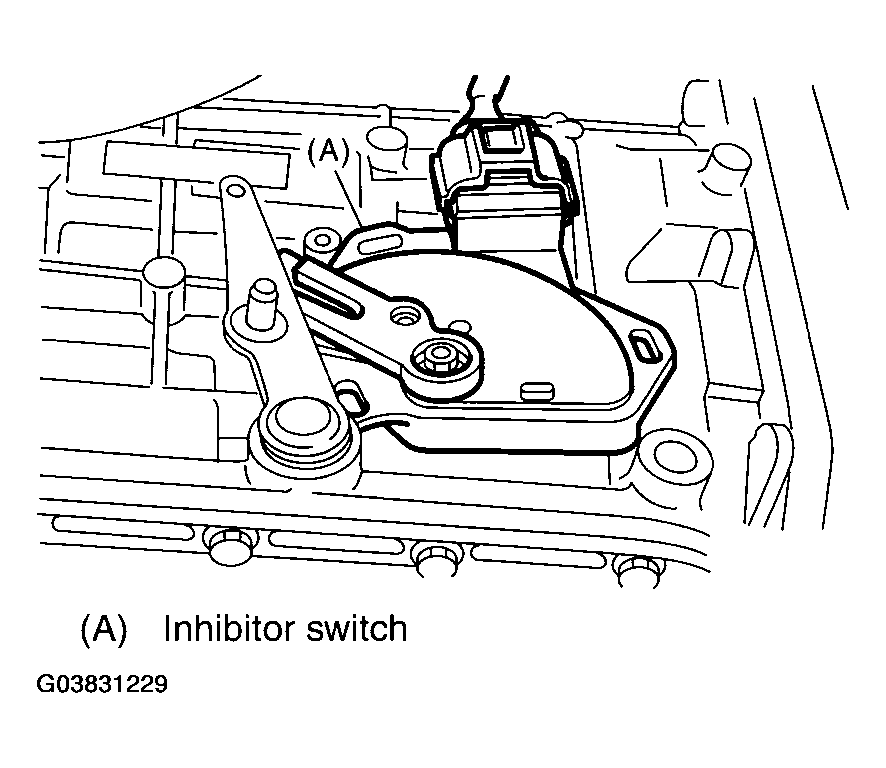

Fig 6: Removing Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch harness connector from inhibitor switch.
