Torque Converter Assembly: Removal

Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
Pull out the torque converter assembly and oil pump shaft horizontally.
NOTE: Be sure not to scratch the inside of bushing in oil pump shaft.

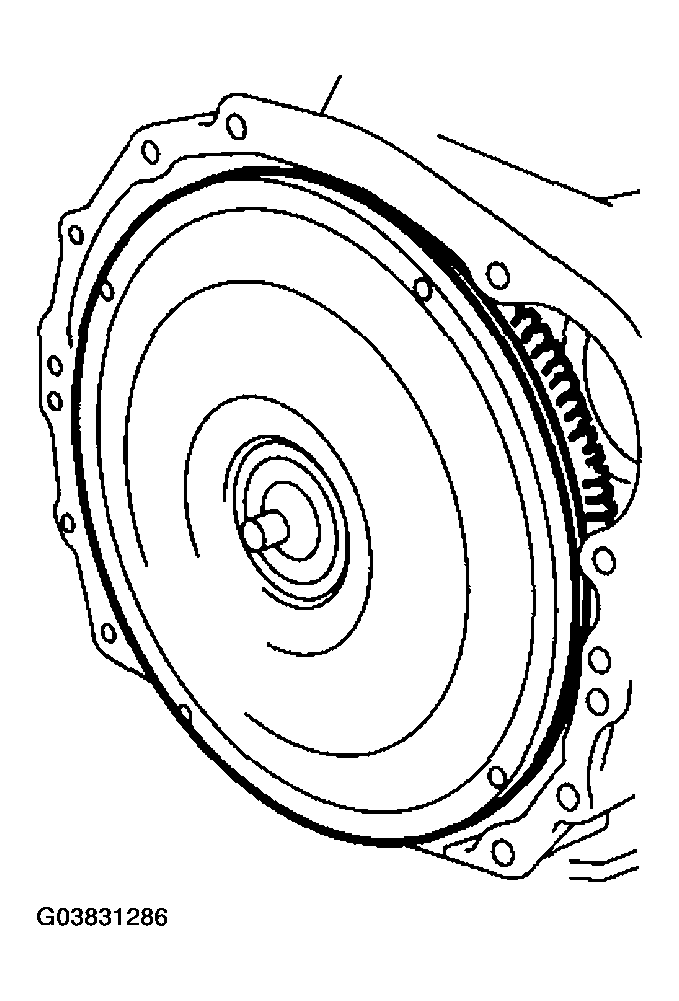

Fig 1: Identifying Torque Converter Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the input shaft.
NOTE: When removing the torque converter assembly, the input shaft is also removed.

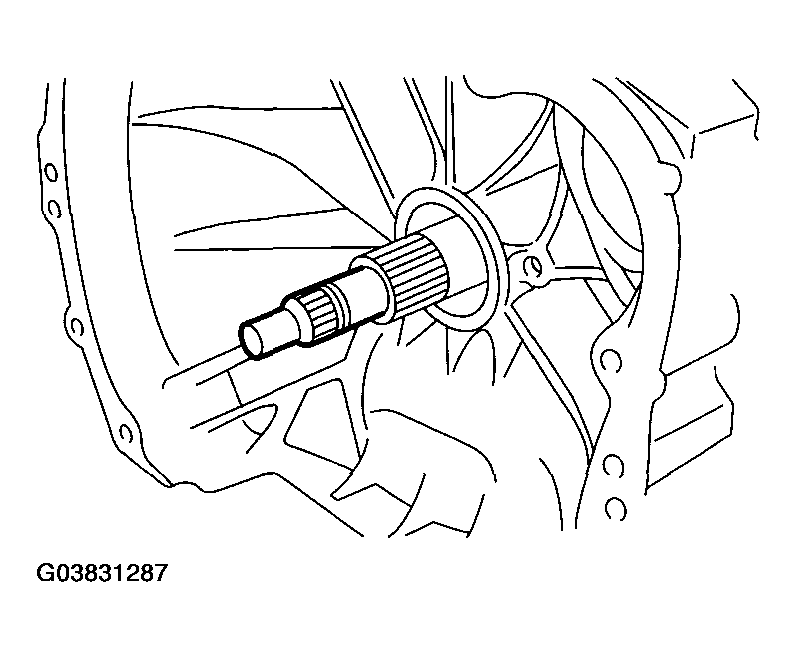

Fig 2: Removing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pump shaft from the torque converter assembly as necessary.
