Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover and remove connector.
  3. Disconnect the connector from TCM.

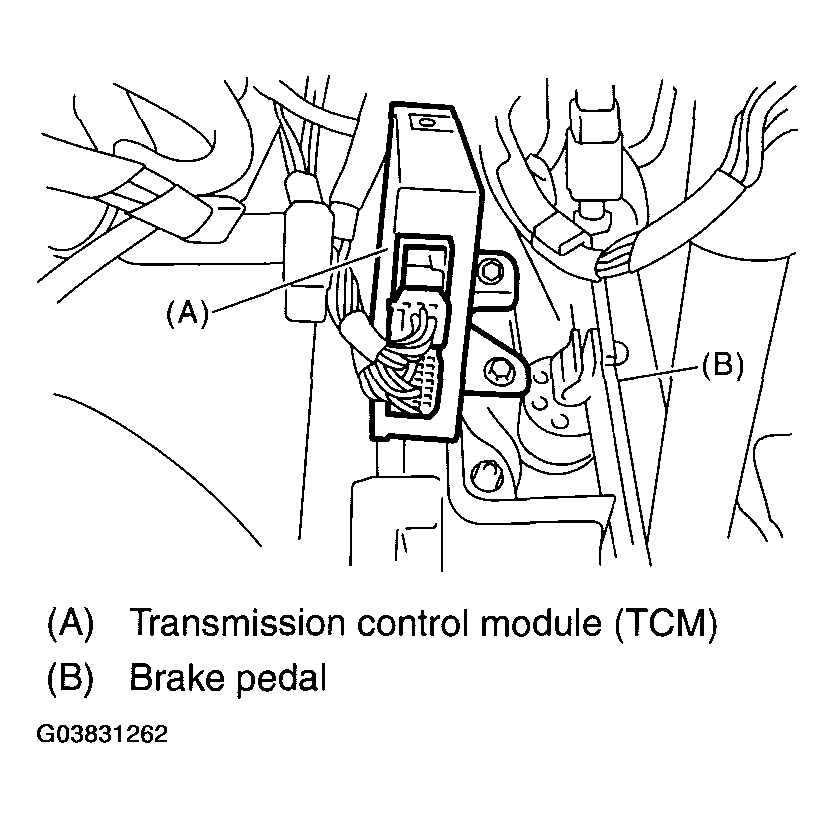

    Fig 1: Disconnecting TCM Connector
    G03831262Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.
