Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
›
ABS Sequence Control
›
Operation
›
Conditions For Abs Sequence Control
Conditions For Abs Sequence Control

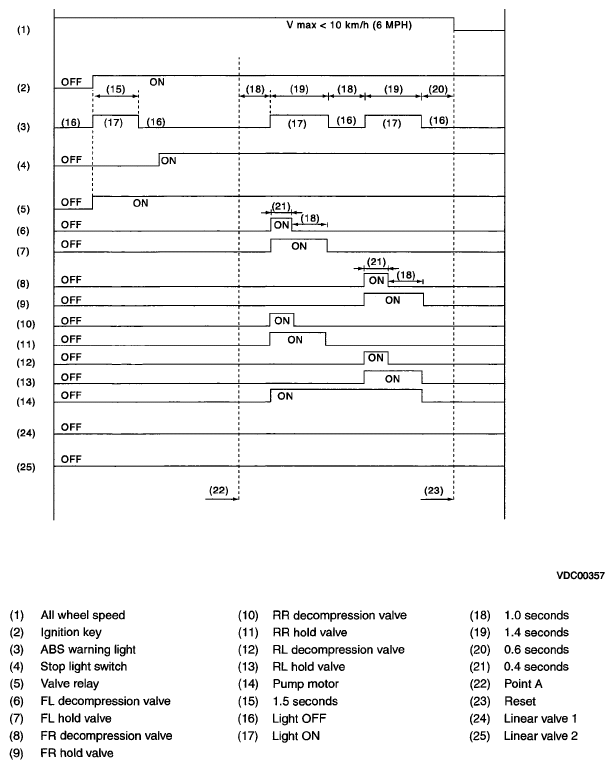

Fig 1: Conditions For ABS Sequence Control
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts from point A.
Courtesy of SUBARU OF AMERICA, INC.
