Starting/Charging Systems (H6DO)
›
General Description
›
Components With Torque Specifications
›
Starter
Components With Torque Specifications: Starter

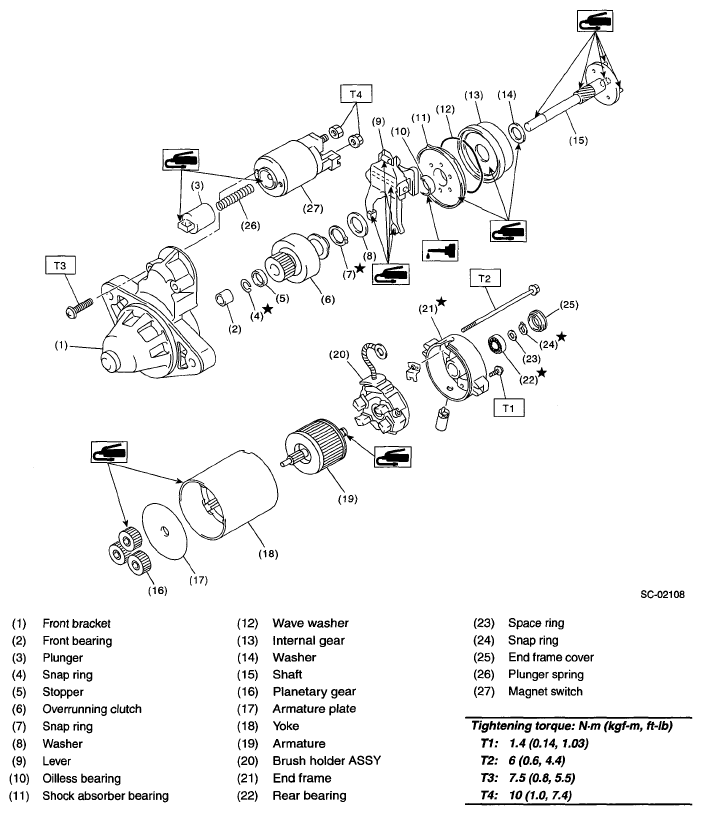

Fig 1: Starter Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
