General Description
›
Components With Torque Specifications
Components With Torque Specifications

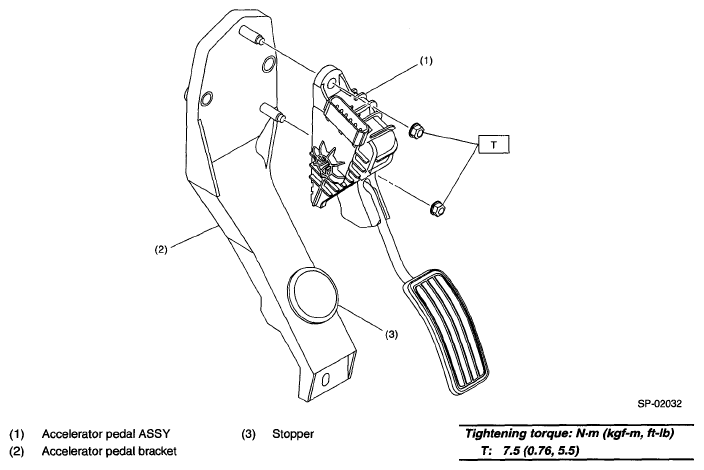

Fig 1: Exploded View Of Accelerator Pedal Assembly With Torque Specifications
