Components With Torque Specifications: Generator

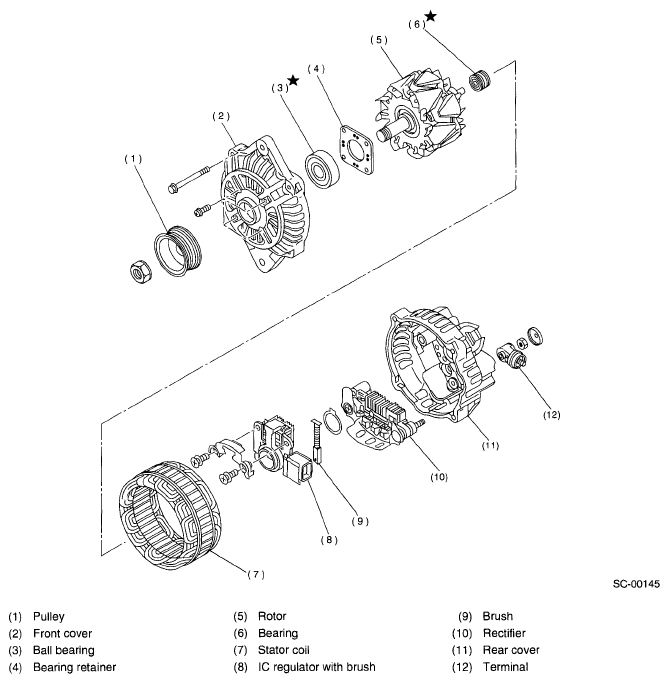

Fig 1: Identifying Generator Components
G04988640Courtesy of SUBARU OF AMERICA, INC.
