Components With Torque Specifications: Starter

MT MODELS

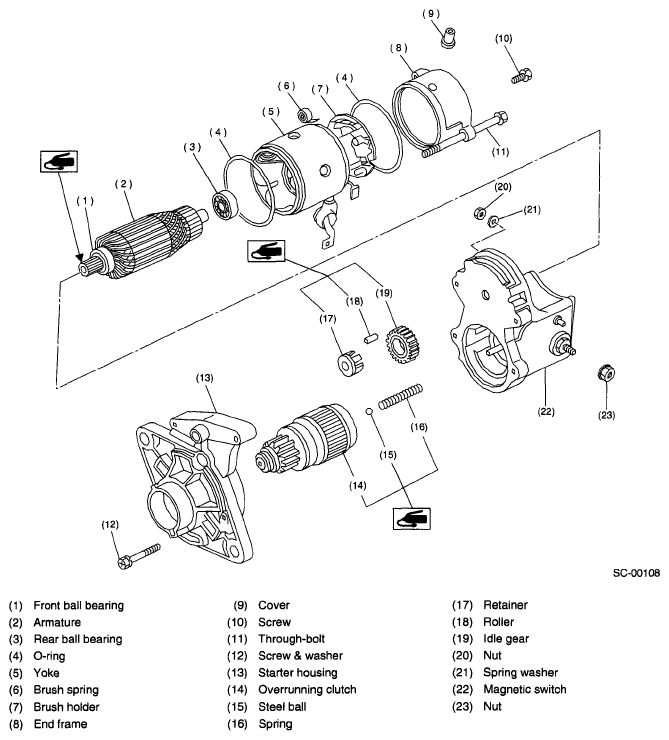

Fig 1: Identifying Starter Components - MT Models
Courtesy of SUBARU OF AMERICA, INC.
AT MODELS

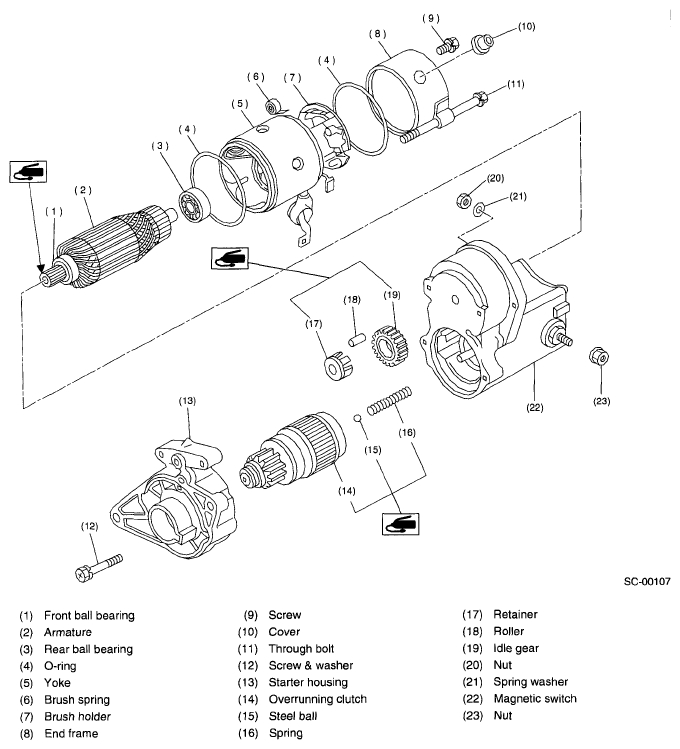

Fig 2: Identifying Starter Components - AT Models
Courtesy of SUBARU OF AMERICA, INC.
