Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Reduction Gear With VTD
Reduction Gear With VTD

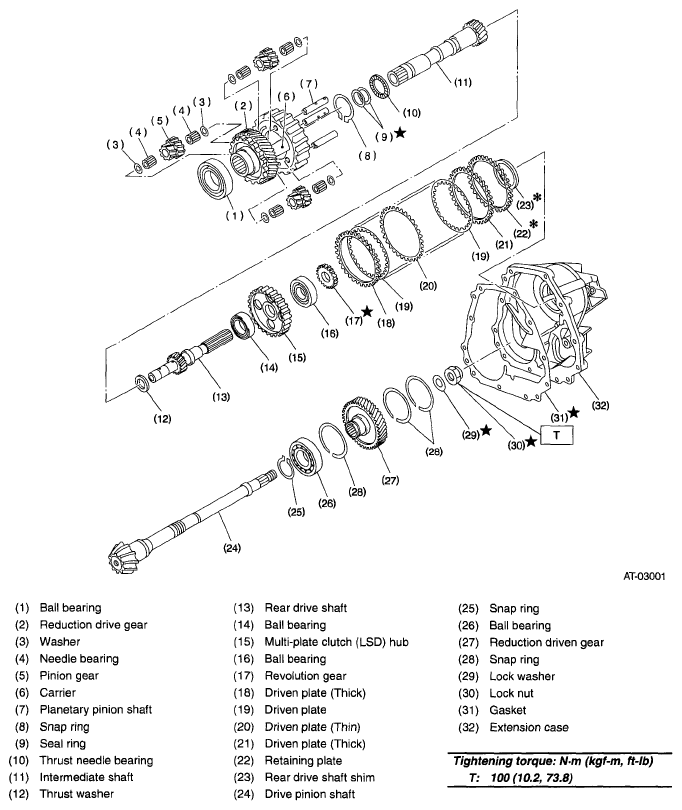

Fig 1: Reduction Gear Replacement Components With VTD And Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
