Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case With MPT
Transfer And Extension Case With MPT

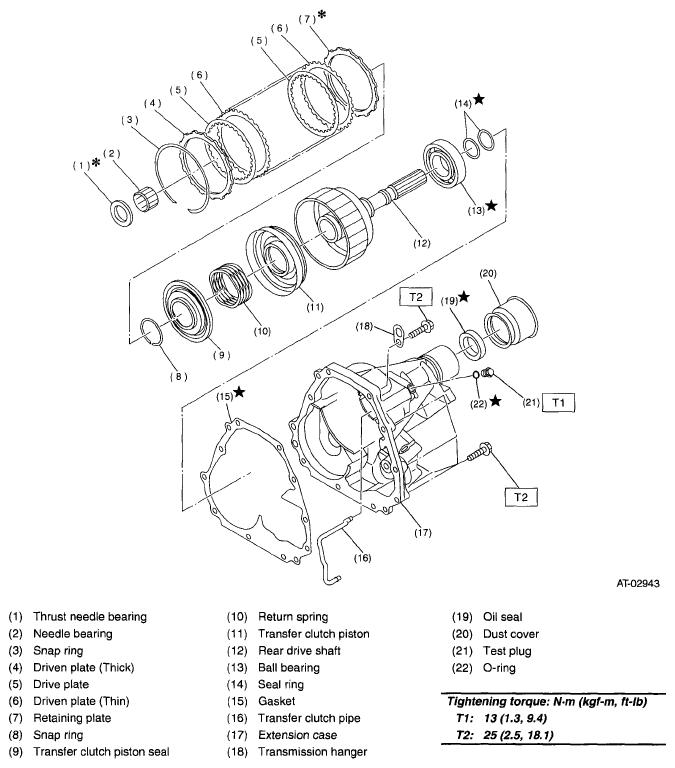

Fig 1: Transfer And Extension Case With MPT Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
