General Description
›
Components With Torque Specifications
›
Mt Gear Shift Lever
Mt Gear Shift Lever

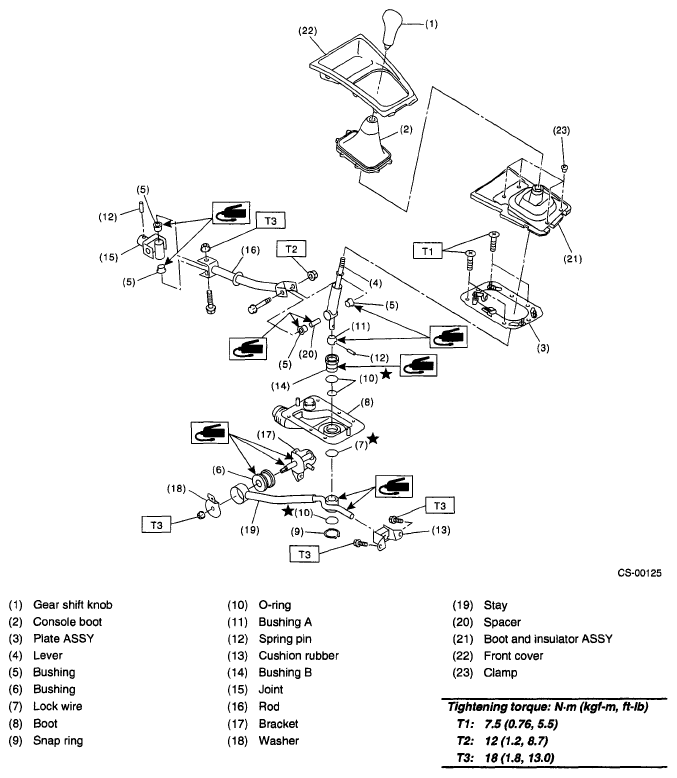

Fig 1: Exploded View Of MT Gear Shift Lever Components With Torque Specifications (MT Gear Shift Lever)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
