Clutch Assembly

Non-TURBO model

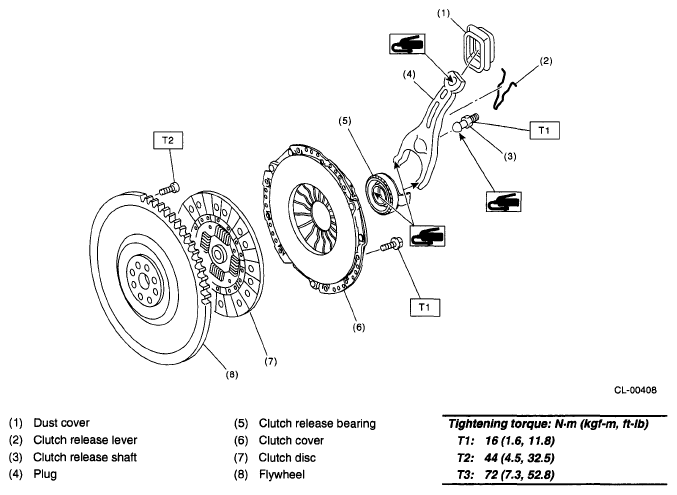

Fig 1: Clutch Assembly Replacement Components With Torque Specifications (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
TURBO model

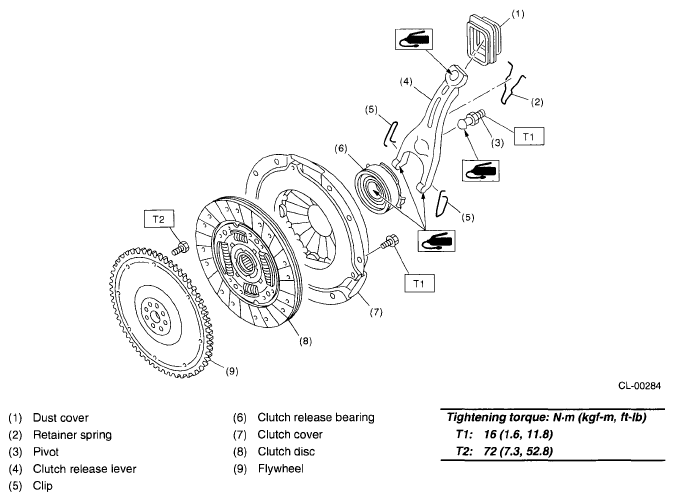

Fig 2: Clutch Assembly Replacement Components With Torque Specifications (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
