Differential Case Assembly

Remove the right and left snap rings from differential, and then remove the two axle drive shafts. (Non-TURBO model)
NOTE: During reassembly, reinstall each axle drive shaft in the same place from which it was removed.
Loosen the twelve bolts and remove the hypoid driven gear.

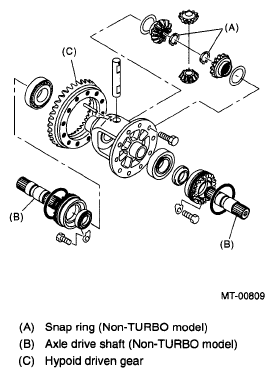

Fig 1: Identifying Hypoid Driven Gear Components
Courtesy of SUBARU OF AMERICA, INC.
Drive out the straight pin from differential assembly toward hypoid driven gear.
ST 899904100 REMOVER

Fig 2: Removing Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out the pinion shaft, and remove the differential bevel pinion and gear and washer.

Fig 3: Identifying Pinion Shaft, Bevel Pinion, Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing using ST.
ST 899524100 PULLER SET

Fig 4: Removing Roller Bearing Using Puller Set ST899524100
Courtesy of SUBARU OF AMERICA, INC.
