General Description
›
Components With Torque Specifications
›
Main Shaft Assembly
Main Shaft Assembly

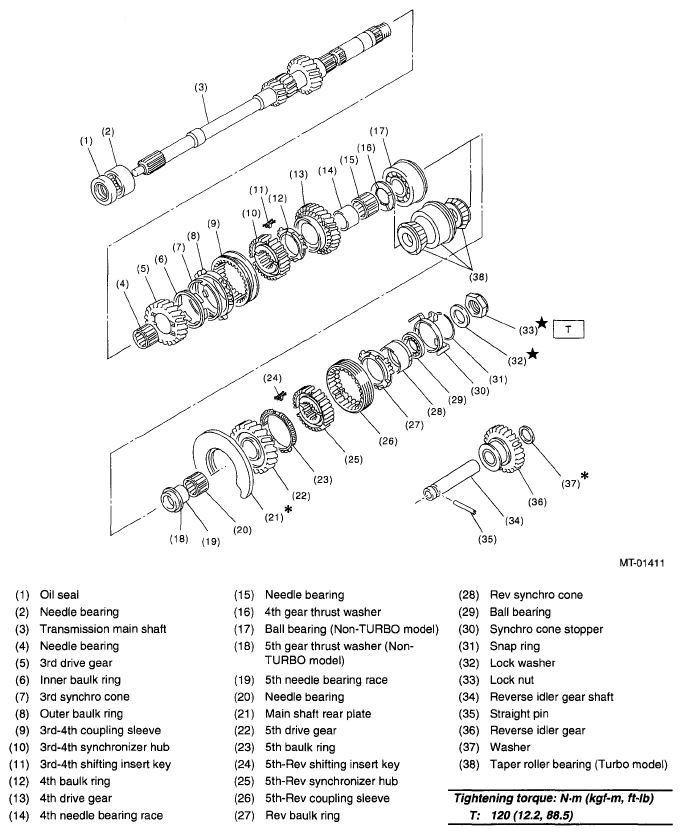

Fig 1: Main Shaft Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
