Transmission Case

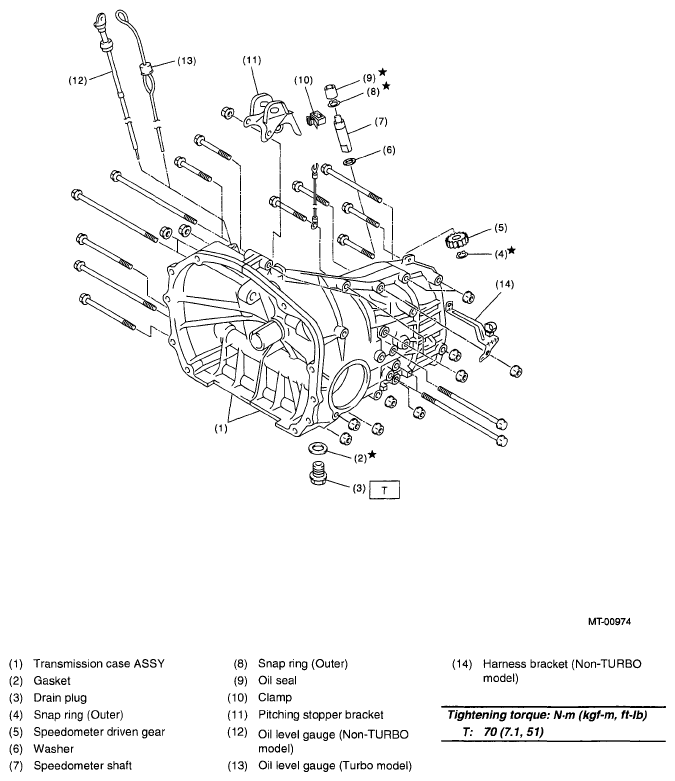

Fig 1: Transmission Case Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION

Bolt No.	Bolt size	Tightening torque: N.m (kgf-m, ft-lb)
< 5 > to < 15 >	8 mm	25 (2.5, 18.1)
< 1 > to < 4 > < 16 >, < 17 >	10 mm	39 (4.0, 28.9)
