General Description
›
Components With Torque Specifications
›
Transfer And Extension Case With VTD
Transfer And Extension Case With VTD

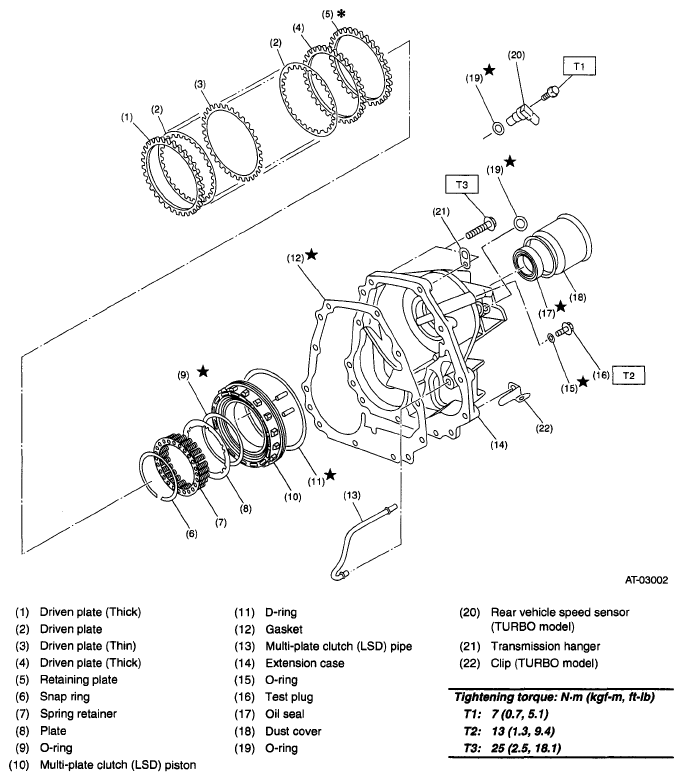

Fig 1: Transfer And Extension Case With VTD Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
