Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
›
General Description
›
Components With Torque Specifications
›
VDC Hydraulic Control Module (VDCH/M)
VDC Hydraulic Control Module (VDCH/M)

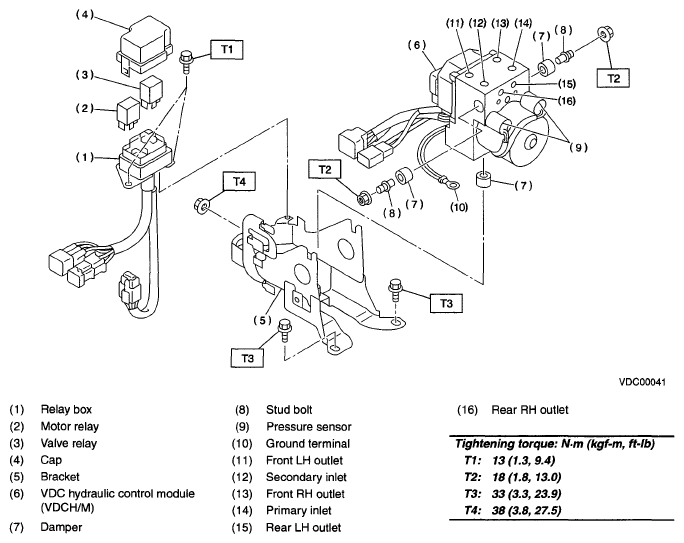

Fig 1: VDC Hydraulic Control Module Replacement Components With Torque Specifications (VDCH/M)
CAUTION:
Parts other than the valve relay and motor relay cannot be disassembled.
