FixVault
Home
›
Subaru
›
2006
›
Forester X, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Control Valve And Harness Routing
Control Valve And Harness Routing

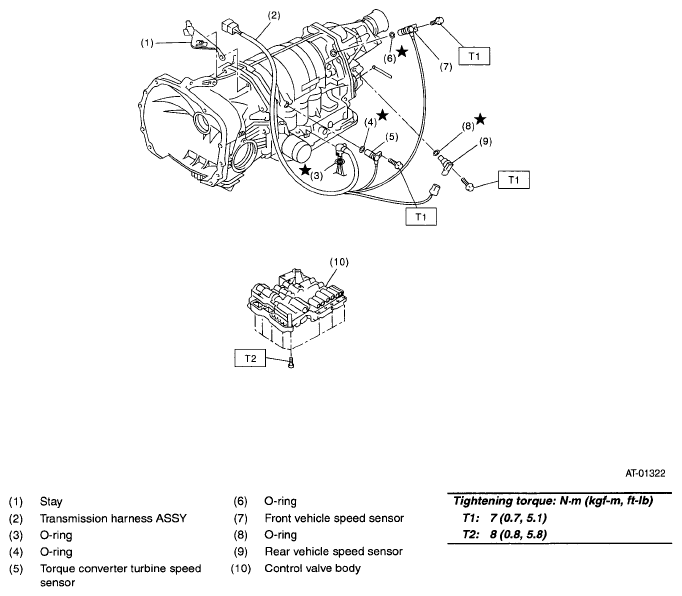

Fig 1: Identifying Control Valve And Harness Routing Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
