Reduction Gear

MPT MODEL

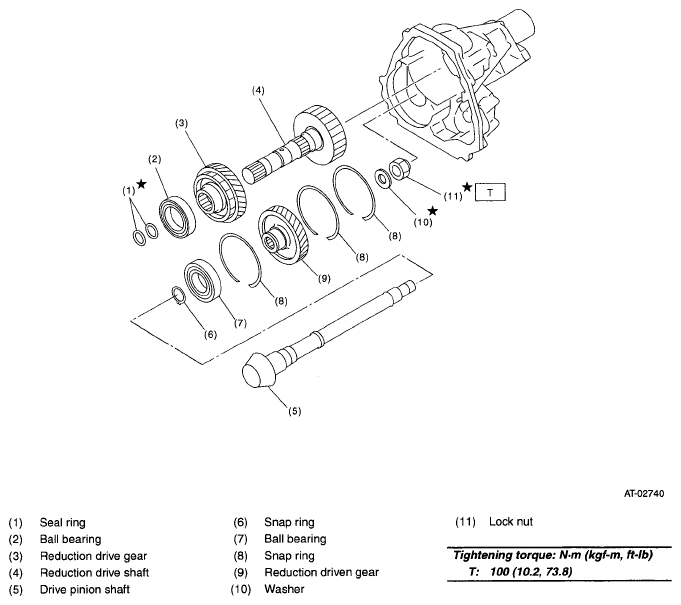

Fig 1: Identifying Reduction Gear Components - MPT Model
G04993986Courtesy of SUBARU OF AMERICA, INC.

VTD MODEL

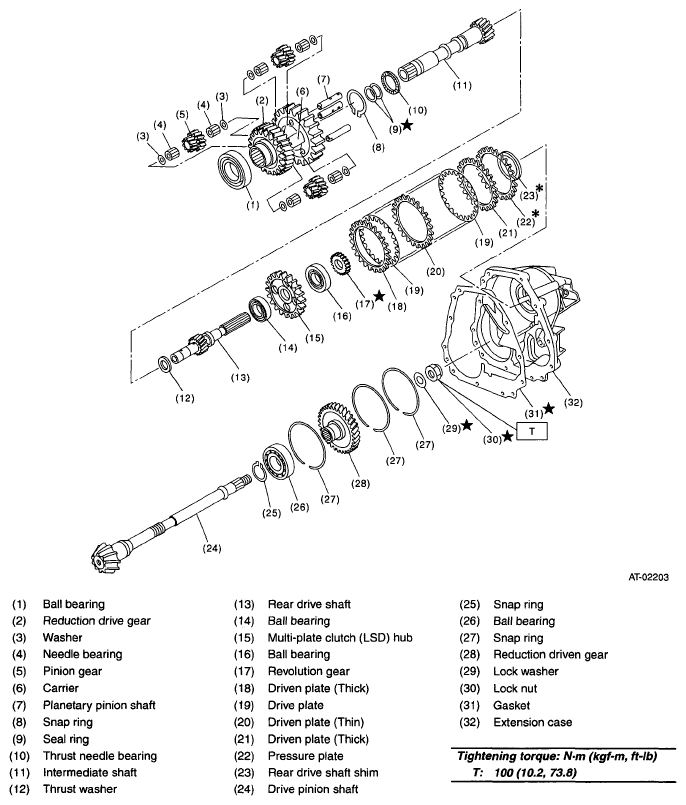

Fig 2: Identifying Reduction Gear Components - VTD Model
G04993987Courtesy of SUBARU OF AMERICA, INC.
