Control Module I/O Signal: Wiring Diagram

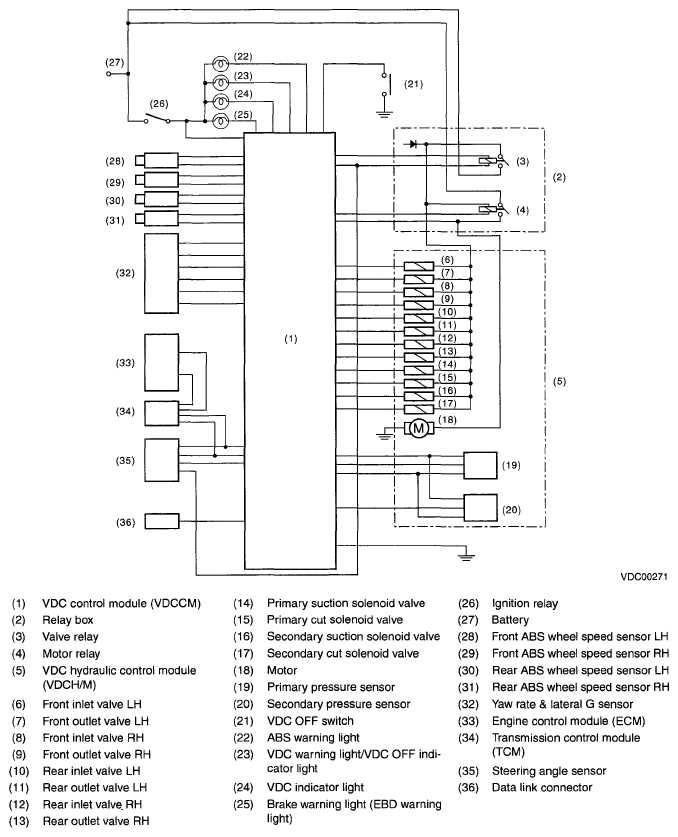

Fig 1: Identifying Control Module - Wiring Diagram
G04994903Courtesy of SUBARU OF AMERICA, INC.
