General Description
›
Components With Torque Specifications
›
Clutch Assembly
Clutch Assembly
Non-turbo model

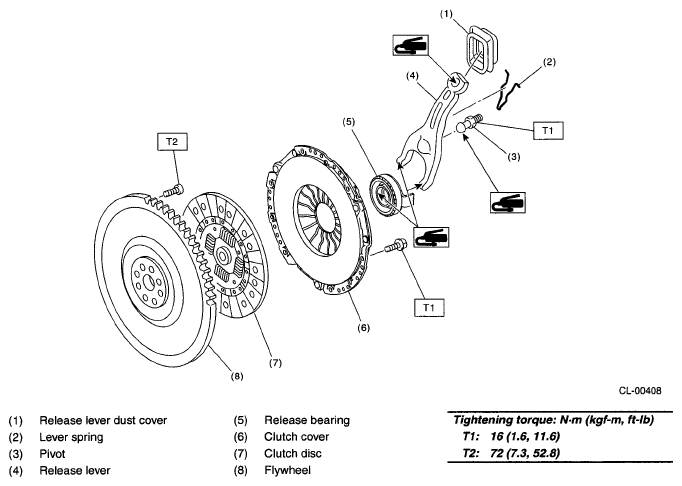

Fig 1: Identifying Clutch Assembly Component - Non-Turbo Model
Turbo model

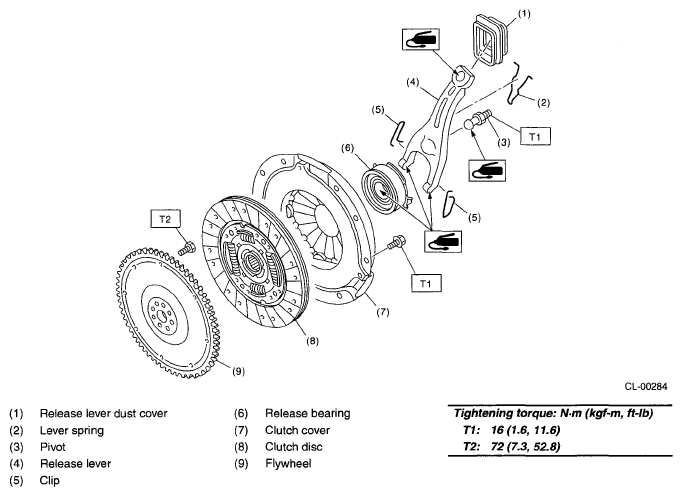

Fig 2: Identifying Clutch Assembly Component - Turbo Model
