DTC P0604 Internal Control Module Random Access Memory (Ram) Error

DTC DETECTING CONDITION:

Immediately at fault recognition
GENERAL DESCRIPTION <Ref. to DTC P0604 INTERNAL CONTROL MODULE RANDOM ACCESS MEMORY (RAM) ERROR , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Engine does not start.
Engine stalls.

CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode <Ref. to OPERATION , CLEAR MEMORY MODE. > and Inspection Mode <Ref. to PROCEDURE , INSPECTION MODE. >

WIRING DIAGRAM:

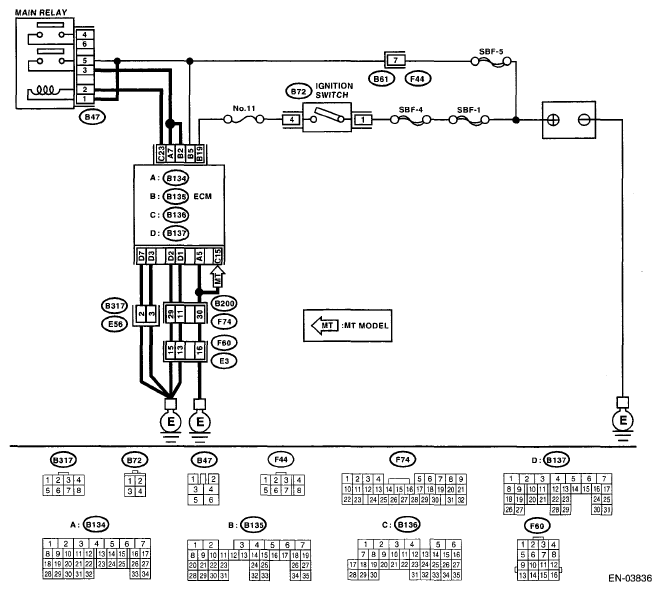

Fig 1: Identifying Internal Control Module Random Access Memory Error - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

TROUBLESHOOTING CHART

Step	Check	Yes	No
1 CHECK ANY OTHER DTC ON DISPLAY.	Is DTC P0604 displayed on the Subaru Select Monitor or OBD-II general scan tool?	Replace the ECM. <Ref. to ENGINE CONTROL MODULE (ECM) . >	Temporary poor contact occurs.
