Home › Subaru › 2006 › Impreza Outback Sport, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › General Description › Components With Torque Specifications › Control Valve And Harness Routing

Control Valve And Harness Routing

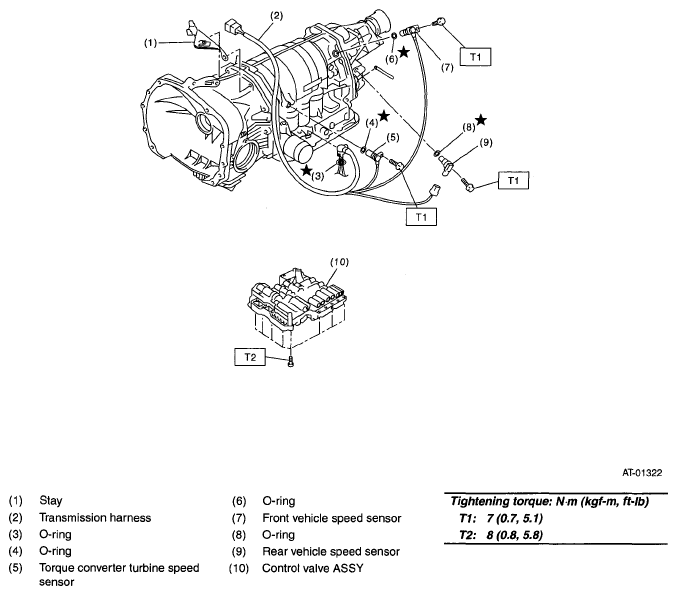

Fig 1: Exploded View Of Control Valve And Harness Routing With Torque Specifications
G05002415
