AT Shift Lock Control System: Wiring Diagram

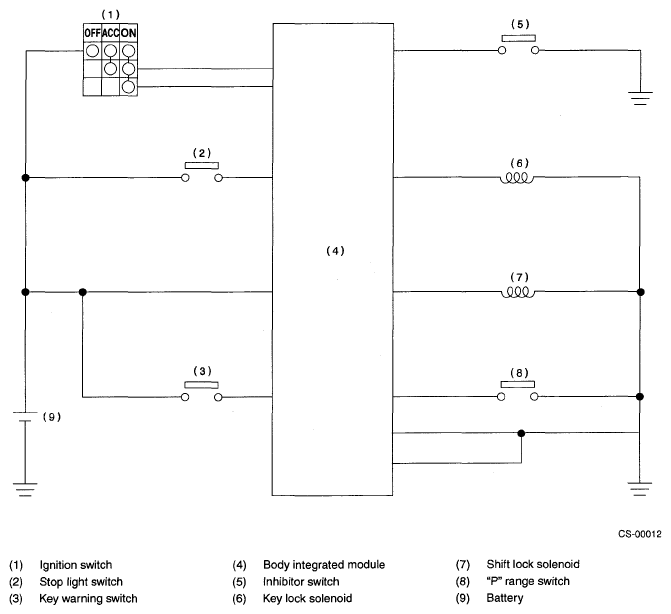

Fig 1: Shift Lock Control System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
