General Description
›
Components With Torque Specifications
›
5MT Gear Shift Lever
5MT Gear Shift Lever

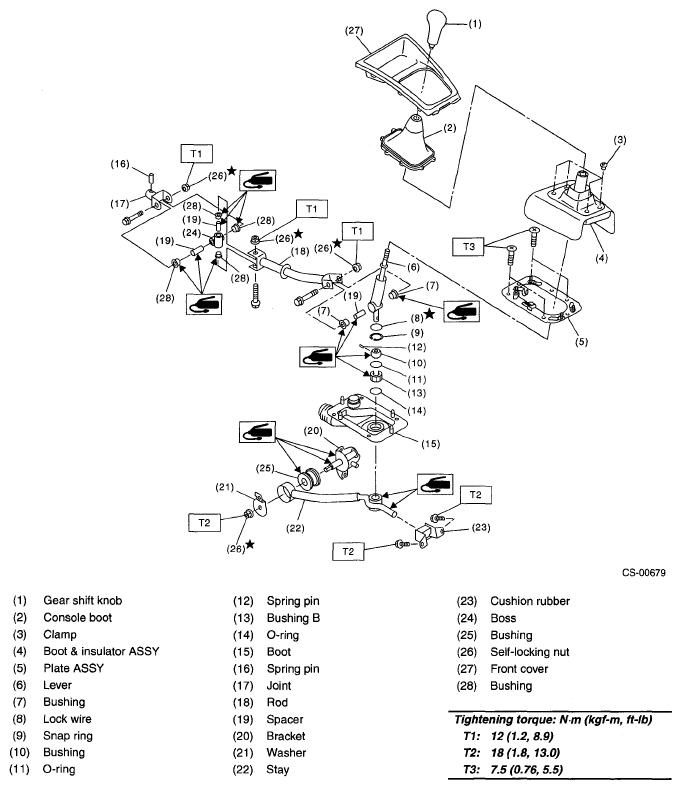

Fig 1: Exploded View Of 5MT Gear Shift Lever Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
