Control Module I/O Signal: Wiring Diagram

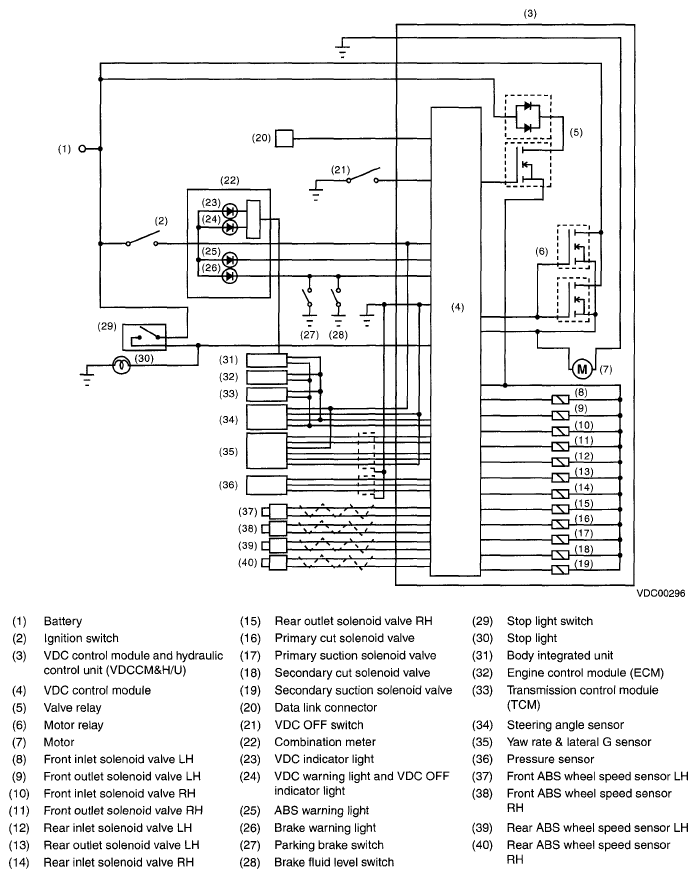

Fig 1: Control Module I/O Signal - Wiring Diagram
G05020291
