FixVault
Home
›
Subaru
›
2006
›
Outback R
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Starting/Charging Systems (H4SO)
›
General Description
›
Components With Torque Specifications
›
Generator
Components With Torque Specifications: Generator

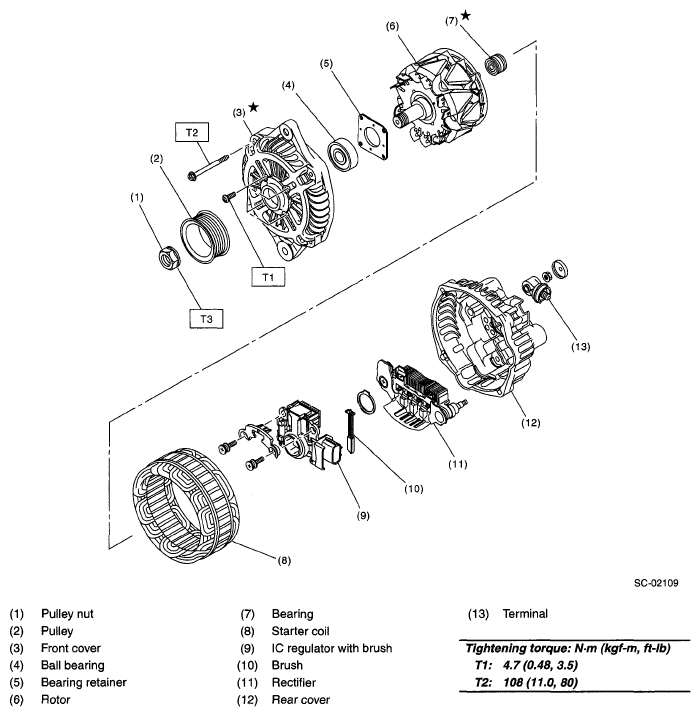

Fig 1: Generator Components With Torque Specifications
