Lubrication (H6DO)
›
General Description
›
Components With Torque Specifications
Components With Torque Specifications

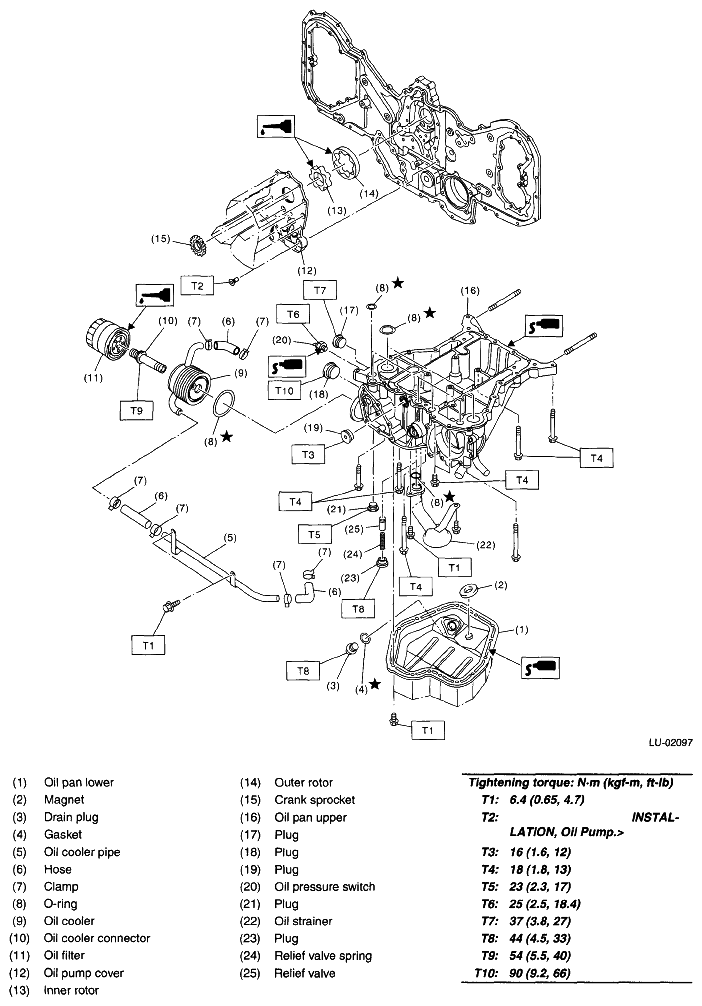

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
